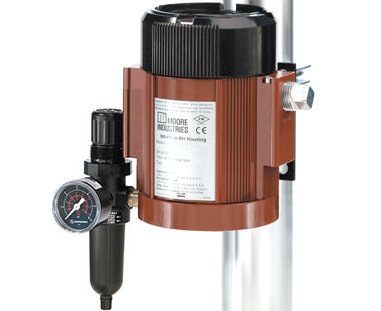

Moore Industries IPX2/12-20mA/.2-1BAR/1.4BAR/-FR1 [EXIMP] | IPX2 Current-to-Pressure (I/P) Transmitter | 12-20 mA Input, 0.2-1 bar Output, Explosion-Proof
Part Number : IPX2/12-20mA/.2-1BAR/1.4BAR/-FR1 [EXIMP]
The Moore Industries IPX2 is a field-mount flame/explosion-proof and intrinsically safe current-to-pressure (I/P) transmitter that converts a current signal into a pneumatic signal for actuators, valves and damper drives. This configuration takes a 12-20 mA (split range) input and gives a 0.2-1 bar output from a 1.4 bar instrument air supply, with accuracy within ±0.25% of span. It includes the -FR1 coalescing filter, miniature supply regulator and gauge, and an M20 conduit housing with pipe-mount base plate.
Key features
- 12-20 mA input, 0.2-1 bar output, 1.4 bar supply
- Accuracy within ±0.25% of span, including linearity, hysteresis and repeatability
- Step response under 0.25 s into a 100 ml load
- Operating temperature -40 to +85 °C
- Explosion-proof housing, Type 3X / IP56 for air models
- -FR1 option: coalescing filter, supply regulator and pressure gauge
- Intrinsically safe, flameproof and non-incendive approvals (CSA, SIRA/ATEX)
