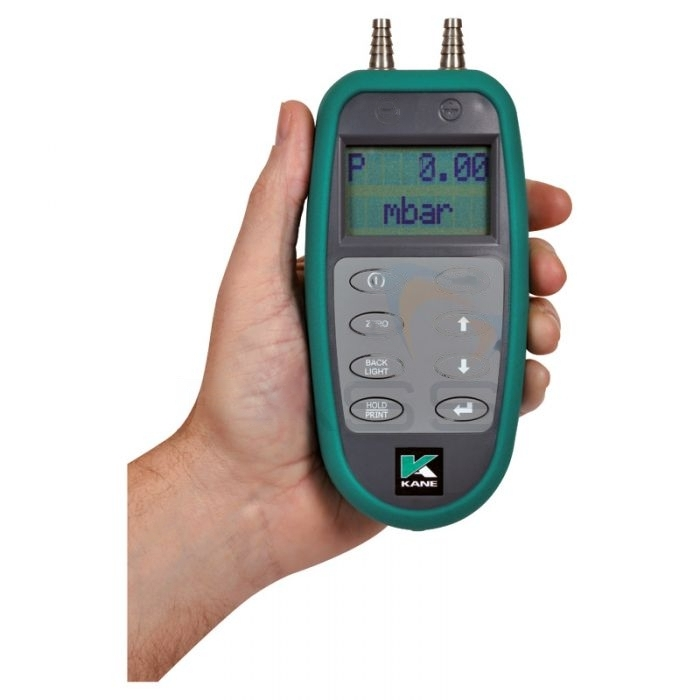

Kane 3500-1 | Differential Pressure Meter | Range 80mbar
The 3500-1 is the entry-level product in Kane's differential pressure metre line, and it measures low pressures to 80mbar with high accuracy, making it ideal for testing flue draughts or the differential pressure of gas/air ratio valves on boilers.
The tester allows you to choose between mbar, Pa, hPa, kPa, mmHg, mmH20, inH20, and PSI measurement units by pressing a button. Measurements are always as accurate as possible thanks to dedicated high/low resolution switching and a smoothing function that dampens pulsing pressure readings.
The Kane 3500-1 includes temperature compensation, which reduces drift caused by temperature changes and ensures accuracy when moving the metre from one temperature to another.
- Specifications
- Features
- Downloads
| Range | +/-20Pa to +/-80hPa |
| Resolution | 0.1pA to 0.01hPa |
Selectable measurement units: mbar, Pa, hPa, kPa, mmHg, mmH20, inH20 and PSI
Data hold function freezes the last value taken on the screen
MAX/MIN recording - determines the maximum or minimum value taken over a period of time
Compatible with Kane wireless infrared printer (sold separately)
Smoothing function filters out pressure pulses to maintain accuracy
Range to 80mbar - suitable for low pressure applications
Resolution down as low as 0.001mbar
Temperature compensation - automatically maintains accuracy when the meter is brought from colder to warmer conditions
Switchable high and low resolution
