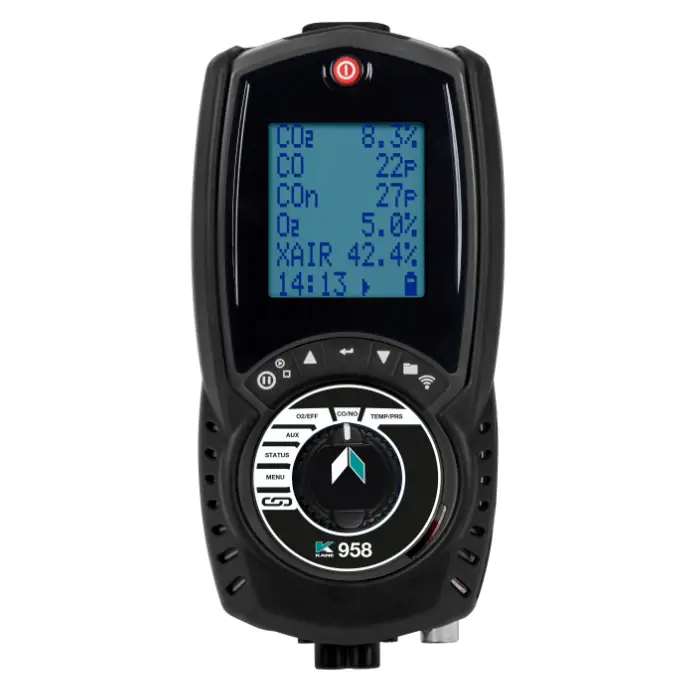

Kane 958 | Commercial Flue Gas Analyser
The Kane 958 Commercial Flue Gas Analyzer is a cutting-edge, upgradeable FGA that can take direct CO and CO2 measurements and has CO, O2, and CO sensor protection. It can test domestic, commercial, and industrial boilers up to 5MW and works with a variety of fuels such as natural gas, LPG, coke, butane, light oil, propane, biogas, heavy oil, coal, and wood pellets.

Free UAE shipping available
- Specifications
- Features
- Downloads
Range | O2: 0-21% ppm CO: 0-10 000ppm (H2 compensation) Differential pressure: +/-160mbar NO: 0-5000ppm (option) NO2: 0-1000ppm (option) High-range CO: 0-10% (option) SO2: 0-5000ppm (option) |
Calculate CO2, CO: CO2, excess air, and combustion efficiency
Option: calculate NOx
Hydrogen ready up to 20%
Purge pump protection to prevent accidental damage to the CO sensor
Easy-to-use rotary dial
6-line display
Data Hold function
Log function
Print function (optional printer required)
Wireless connectivity for communication with KANE-Link-enabled devices
Work light
A customisable, state-of-the-art, practical FGA
A cutting edge, upgradable flue gas analyser
Take direct CO and CO2 measurements
CO, O2, and CO sensor protection
Test domestic, commercial, and industrial boilers up to 5MW
Fuel types: natural gas, LPG, coke, butane, light oil, biogas, heavy oil, coal, and wood pellets
O2: 0-21% ppm
CO: 0-10 000ppm (H2 compensation)
Differential pressure: ±160mbar
NO: 0-5000ppm (option)
NO2: 0-1000ppm (option)
High-range CO: 0-10% (option)
SO2: 0-5000ppm (option)
