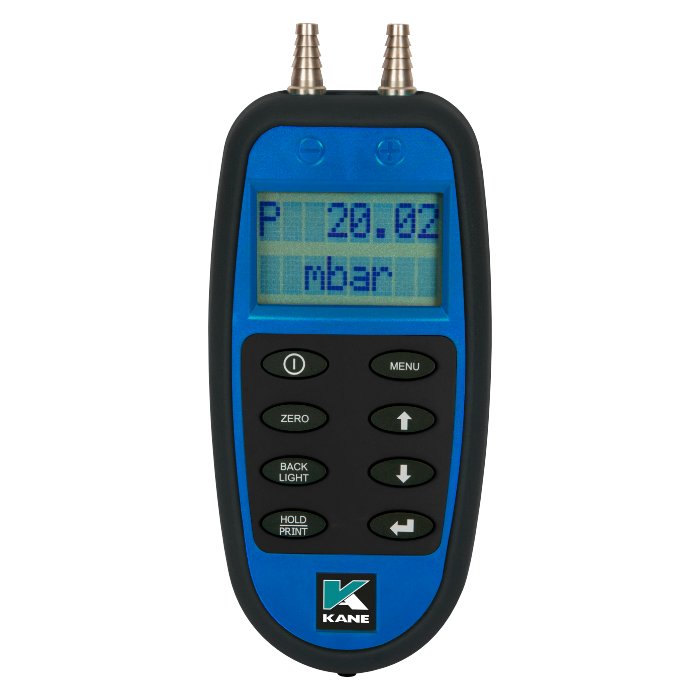

Kane Differential 3500-2 Differential Pressure Meter | Range 160mbar
With this digital manometer, you can measure differential pressure up to 160mbar. The Kane 3500-2 is ideal for use in almost any pressure measurement application, thanks to features such as automatic temperature compensation, dedicated 250 record memory with adjustable logging interval, data hold, MAX/MIN, and switchable high/low resolution.
- Specifications
- Features
- Downloads
| Dimensions | 160mm x 80mm x 40mm (180mm incl. spigots |
| Range | +/-20Pa to +/-160hPa |
| Resolution | 0.1pA to 0.01hPa |
| Weight | 310g with battery |
Data hold function freezes last value taken on the screen
MAX/MIN recording
Let-by, stabilisation and tightness tests
Manual and automatic datalogging - stores up to 250 readings on memory
Range of 160mbar (±5psi)
Resolution to 0.1 pascal
Temperature compensation for superior accuracy
Switchable between high and low resolution
Selectable measurement units: mbar, mmH20, Pa, kPa, PSI, mmHg, hPa and inH20
