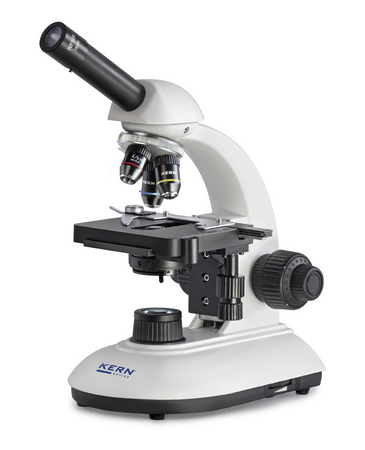

Kern OBE 101 | School Compound microscope | Ocular magnifications 10 x
When it comes to ergonomic design and ease of use, the KERN OBE line of compound microscopes is unmatched in quality and features.
The robust and constantly dimmable 3 W-LED ensures that the samples are optimally illuminated and that its lifespan is extended.
An additional high-quality feature of the OBE series is the height-adjustable, hence focusable 1,25 Abbe condenser with aperture diaphragm that guarantees the optimal light concentration.
Both sides of the fully functional mechanical stage have coarse and fine focusing knobs for adjusting the stage's height. The coaxial drive's ergonomic form makes it possible for you to handle the samples and move them quickly.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 320ƒ-180ƒ-365 mm |
Magnification | 10 x |
Storage Temperature | -5 °C to 40 °C |
Type | Monocular |
- designed for usage in training applications, universities, schools, and labs.
- Numerous types are available; you can select from regular or rechargeable versions, as well as binocular and monocular versions.
- A 3W dimmable LED light source makes seeing simpler.
- ergonomically crafted, cozy viewing glasses.
- There are several choices for achromatic objective lenses, including 4x, 10x, 40x, 100x, 20x, and 60x (the lenses that are supplied depend on the model that was purchased).
- 360° rotating tube with a 30° inclination.
- The quadplex nosepiece may accommodate four objective lenses at once.
- Darkfield and polarization units are optional.
- With focus knobs on either side, adjusting height is simple.
- Standard 230V mains operation or rechargeable battery (available exclusively on select models) are the two options.
- Huge stage equipped with an Abbe condenser.
