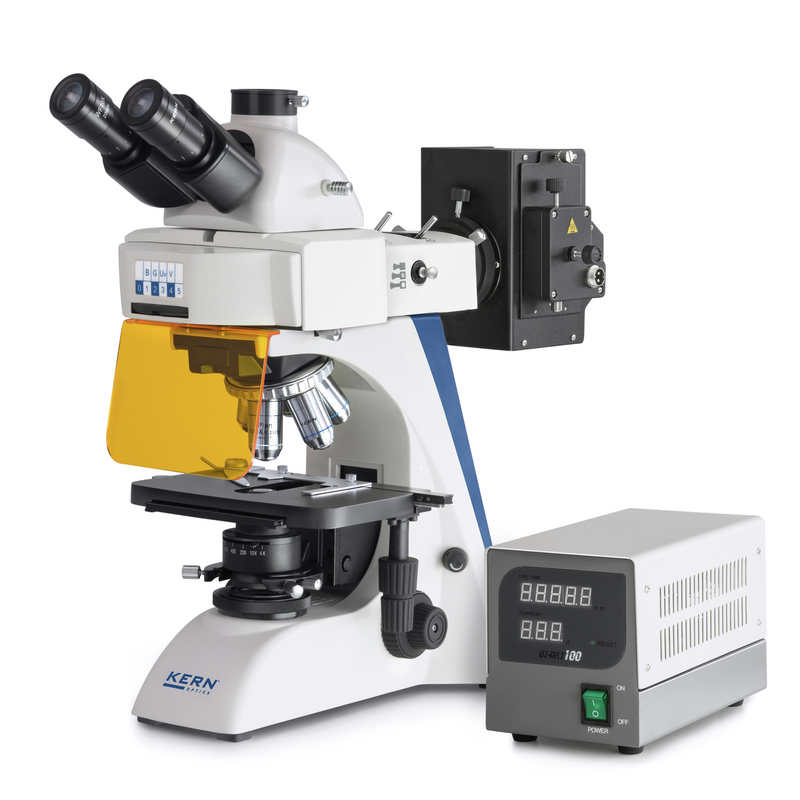

KERN OBN 147 | Trinocular Fluorescence Microscope | 100 W Epi-Fluorescence, 20 W Halogen
The KERN OBN 147 is a trinocular fluorescence microscope from the OBN-14 line, combining dimmable 20 W Philips halogen transmitted light with a 100 W epi-fluorescence incident illumination unit to illuminate and excite fluorescent samples.
- Koehler illumination unit with adjustable field diaphragm
- 1.25 Abbe condenser, height-adjustable, with aperture diaphragm
- Large stage with coaxial coarse and fine focusing either side
- 10x eyepieces; 530 × 220 × 490 mm
- Specifications
- Features
- Downloads
| Part Number | OBN 147 |
| Brand | KERN |
| Type | Trinocular |
| Eyepiece Magnification | 10x |
| Transmitted Light | 20 W Philips halogen, dimmable |
| Incident Light | 100 W epi-fluorescence |
| Condenser | 1.25 Abbe, adjustable aperture diaphragm |
| Dimensions | 530 × 220 × 490 mm |
| Storage Temperature | -5 °C to 40 °C |
- High-quality fluorescence microscope designed for tough samples with low contrast, transparency, and a wide range of applications
- Exceptionally solid build and excellent optics make this one of the best fluorescence scopes in its class.
- 1.25 Abbe condenser with height adjustment, centerable, and movable aperture diaphragm
- substantial mechanical stage (175 x 145 mm) with coaxial fine and coarse focus adjusters on the scope's two sides
- Inverted eyepieces in the style of binoculars that include room for a C-Mount adapter to mount a camera
- comes with regular 4x, 10x, 20x, 40x, and 100x infinity plan lenses.
