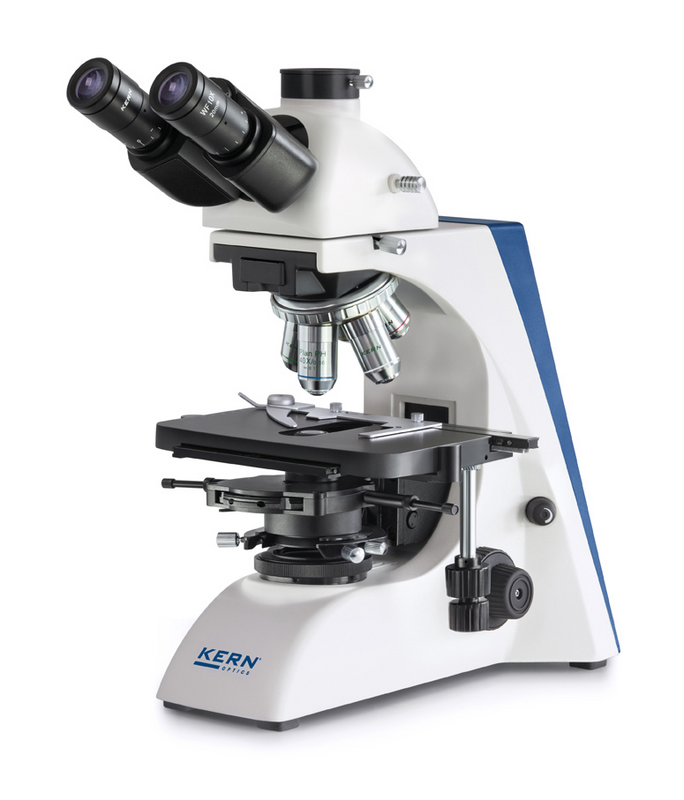

KERN OBN 158 | Phase Contrast Microscope | Trinocular, Infinity Plan Phase
The KERN OBN 158 is a pre-configured trinocular phase contrast microscope that combines a phase contrast condenser, a quintuple condenser wheel and Infinity Plan phase contrast objectives. Transmitted light is supplied by a 20 W Philips halogen lamp.
- Koehler illumination with adjustable field diaphragm
- Height-adjustable 1.25 Abbe condenser with aperture diaphragm
- Part of the modular OBN series
- 10x eyepieces; 390 × 200 × 400 mm
- Specifications
- Features
- Downloads
| Part Number | OBN 158 |
| Brand | KERN |
| Type | Trinocular |
| Contrast Method | Phase contrast |
| Objectives | Infinity Plan phase contrast |
| Condenser | Phase contrast with quintuple wheel |
| Eyepiece Magnification | 10x |
| Illumination | 20 W Philips halogen |
| Dimensions | 390 × 200 × 400 mm |
| Storage Temperature | -5 °C to 40 °C |
- An advanced, top-notch microscope
- Superior phase contrast functionality
- Expert condenser wheel
- Phase contrast aims of the infinite plan: PH10x, PH20x, PH40x, PH100x, and 4x
- Ideal for using phase contrast to view highly translucent, difficult samples with low contrast
- Examine the tissue from microorganisms and living mammals.
- Ideal for use in sewage treatment, water analysis, veterinary medicine, and breweries, among other scientific fields
- robust and always adaptable Philips 20W halogen transmission light source
- Koehler lighting fixture
- PH universal rotating condenser with height adjustment
- Diaphragm aperture
- Diaphragm for field
- Coaxial fine and coarse focusing knobs on the microscope's two sides
- The head of the microscope may rotate 360 degrees. Trinocular microscope
- Attach a camera to the microscope with a C-mount adapter (see "Accessories," NOT included).
- Orienting the eyepiece to modify the phase contrast
