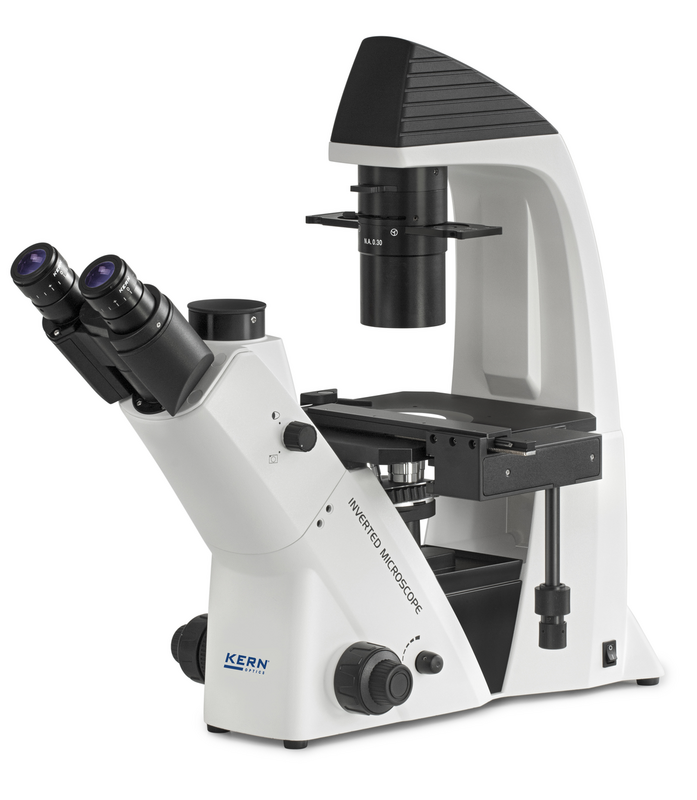

KERN OCM 161 | Inverted Microscope | Trinocular, 30 W Halogen
The KERN OCM 161 is a trinocular inverted microscope with 10x eyepieces and a 30 W halogen light source. Its long working distance suits tasks such as monitoring and analysing cell cultures, and the Abbe N.A. 0.3 condenser with 72 mm working distance serves bright field and fluorescence applications.
- Trinocular eyepiece tube as standard
- Adjustable 30 W halogen illumination
- Abbe N.A. 0.3 condenser with aperture diaphragm, 72 mm working distance
- Mechanical stage with specimen holder (approx. 110 mm)
- Dimensions 599 × 304 × 530 mm
- Specifications
- Features
- Downloads
| Part Number | OCM 161 |
| Brand | KERN |
| Microscope Type | Inverted |
| Illumination | 30 W halogen, adjustable |
| Condenser | Abbe N.A. 0.3 with aperture diaphragm |
| Condenser Working Distance | 72 mm |
| Stage | Mechanical stage with specimen holder (approx. 110 mm) |
| Dimensions | 599 × 304 × 530 mm |
| Eyepiece Magnification | 10 x |
| Storage Temperature | -5 °C to 40 °C |
| Type | Trinocular |
- Combination, laboratory-quality microscope including triple eyepieces (two eyepieces with a camera space) inverted
- designed for tissue and cell culture breeding and research
- There are two models: OCM 161 has a 30W halogen lighting unit, and OCM 165 has both a halogen illumination unit and an Osram 100W Epi fluorescence illuminator. The latter model has an aperture diaphragm and a large working distance of 72mm.
- 118 mm diameter mechanical stage with specimen holding
- Contains a dust cover in the package
- The infinite optical system
- Typical models aim to achieve the following: LWD10x, 20x, 40x, and 20xPH
- Adjusting the diopter on both sides
