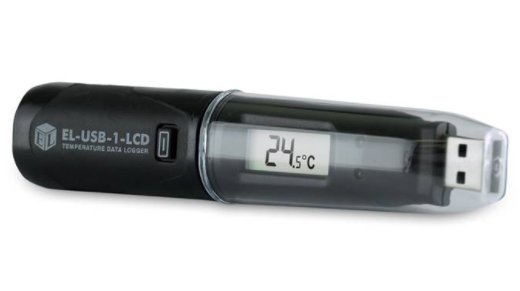

Lascar EasyLog | EL-USB-1-LCD Temperature Data Logger with USB and Display
This standalone data logger measures more than 16,000 readings over a -35 to +80°C (-31 to +176°F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session.
Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.
- Specifications
- Features
- Downloads
| Accuracy | +/- 0.5°C |
| Battery Life | 2 years |
| Logging Rate | User selectable between 10 seconds and 12 hours |
| Measurement Range (Temp) | -35°C to +80°C |
| Type | Display |
| Type | USB |
▪ -35 to +80°C (-31 to +176°F) measurement range
▪ Stores over 16,000 readings
▪ EasyLog software available as a free download
▪ Logging rates between 10 seconds and 12 hours
▪ High contrast LCD, with two and a half digit temperature display function
▪ Immediate, delayed and push-to-start logging
▪ User-programmable alarm thresholds
▪ Status indication via red and green LEDs
▪ Environmental protection to IP67
