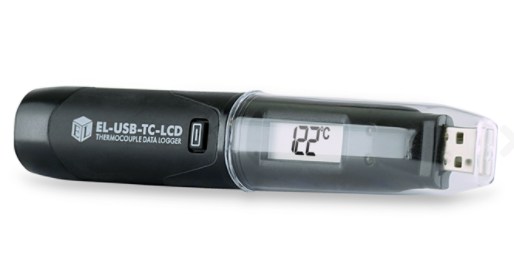

Lascar EasyLog | EL-USB-TC-LCD Thermocouple Temperature Data Logger
This standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box measures from 0 to 200°C (32 to 392°F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery, K-type probe and wall mount clip.
- Specifications
- Features
- Downloads
Accuracy | +/-1°C |
Battery Life | 2 Years |
Logging Rate | User selectable between 1 second and 12 hours |
Measurement Range (Temp) | 0°C to +200°C |
Type | Display |
Type | USB |
▪ Compatible with K, J and T type thermocouples with miniature thermocouple plug connection
▪ Stores over 32,000 readings
▪ EasyLog software available as a free download
▪ Supplied with 1.5m K-type thermocouple with 0 to 200°C (32 to 392°F) measurement range
▪ High contrast LCD, with four digit temperature display function
▪ Logging rates between 1 second and 12 hours
▪ Immediate, delayed and push-to-start logging
▪ User-programmable alarm thresholds
▪ Status indication via red and green LEDs
