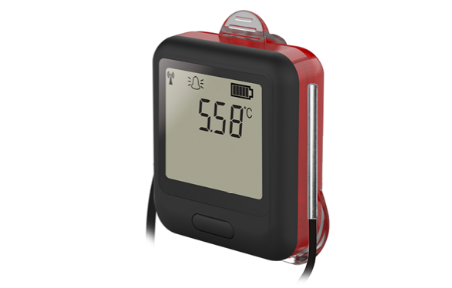

Lascar EasyLog | EL-WiFi-TPX+ WiFi-Connected High-Accuracy Temperature Data Logger with Alarm Warning Light and Sounder
The EL-WiFi-TPX+ remotely monitors the environment over a -40 to +125°C (-40 to +257°F) measurement range, and comes equipped with an alarm warning light and sounder to make sure you never miss a temperature breach. Data is uploaded periodically using a standard WiFi network to the EasyLog Cloud or a single host PC.
EasyLog Cloud gives access to each data logger, and data collected from any internet-enabled device. Change data logger settings remotely, receive email alerts of alarm conditions, link sensors from multiple sites into one account, and assign multiple user privileges.
The device will store data internally if it loses WiFi connection and automatically uploads it to the Cloud once reconnected.
Use the EasyLog Cloud Apps for Android and Apple to easily set up your device and access your data anytime, anywhere.
A high accuracy thermistor temperature probe and a wall mounting bracket are included with the product.
- Specifications
- Features
- Downloads
Battery Life | >6 months |
Dimensions | 82 x 70 x 36mm |
Display Resolution | 0.01 |
IP Rating | Logger IP42 |
Logging Rate | User selectable between 10 seconds and 12 hours |
Measurement Range (Temp) | -40°C to 125°C |
Operating Temperature Range | 20 to +60°C |
Type | Display |
Type | WiFi |
• Temperature measurement range -40 to +125 °C (-40 to +257 °F)
• Configurable alarm levels with on-board warning light and sounder
• Digital calibratable probe with 3m cable (calibration certificate can be ordered separately)
• No need to remove from service for recalibration, just replace the probe
• Wirelessly stream and view data on the EasyLog Cloud, and configure alarm email notifications
• View and analyse multiple devices, including graphing of historic data
• Easy device setup using free PC software or mobile app
• Device memory stores all data even if Wi-Fi is temporarily disconnected
