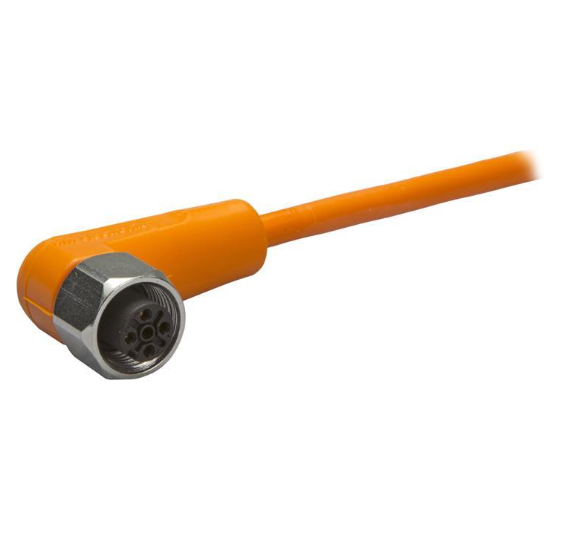

M12 Sensor cable ifm electronic EVT014
The 5-pole M12 sensor cable EVT014 from ifm is temperature resistant up to 100 °C and therefore especially suited for difficult applications. The EVT014 sensor cable consists of a 10 m PVC cable, an angled M12 socket and gold-plated contacts. The M12 stainless steel coupling nut is secured against shock and vibration due to saw tooth contoured vibration protection. Thanks to the high protection rating IP67/IP68/IP69K and the ECOLAB certificate the silicone-free sensor cable EVT014 is ideally suited for hygienic and wet areas in the food industry.
- Specifications
- Features
- Downloads
| Application | sanitary and wet areas in the food industry |
| Material | housing: PVC orange; sealing: EPDM |
| Operating voltage [V] | < 60 AC/DC V |
| Protection class | II |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| System | Free from silicone; gold-plated contacts; Drag chain suitability |
| Weight | 455.8g |
- For use in sanitary and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
