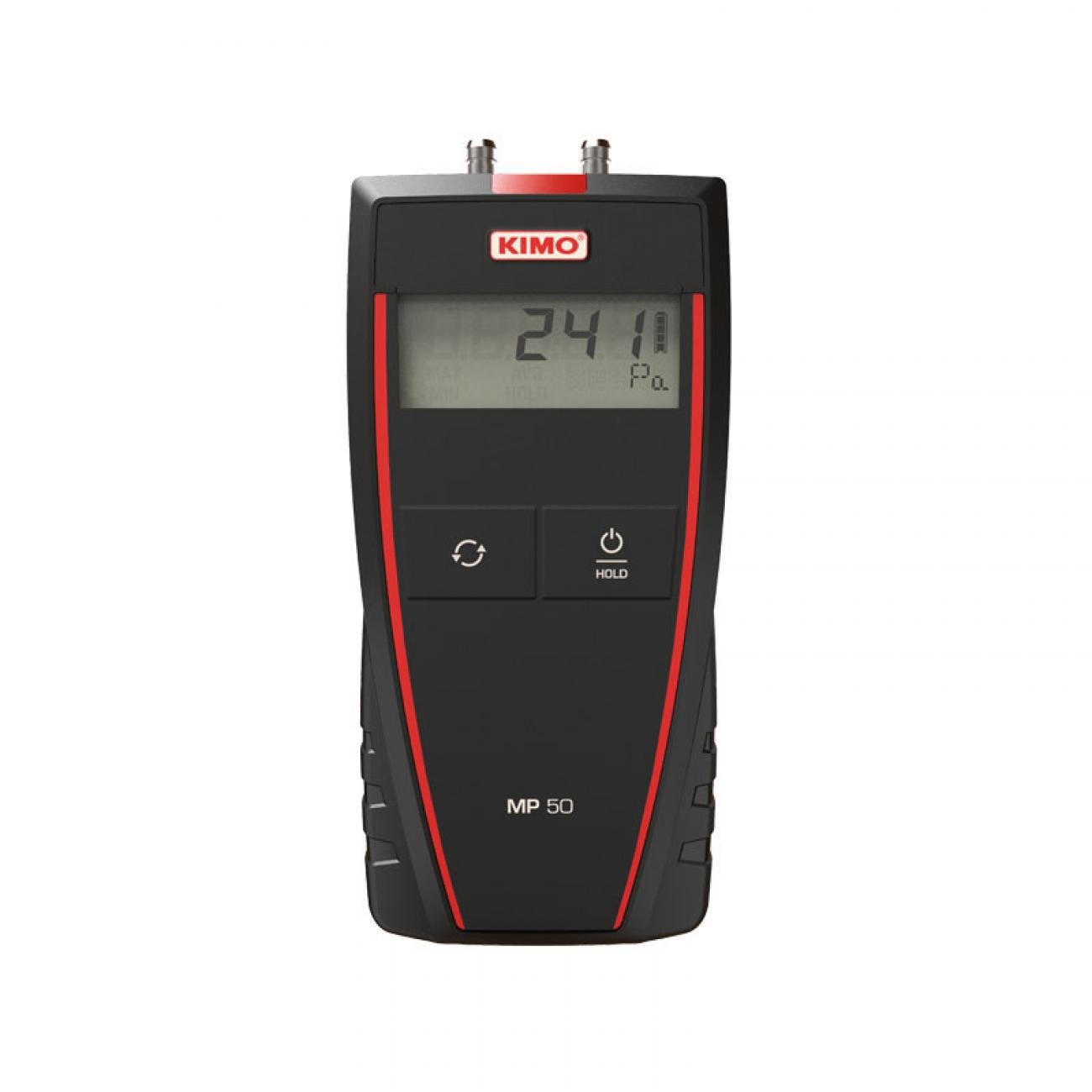

Manometer | Range From -1000 to +1000 mmH2O | With Piezoresistive sensor
A Micromanometer makes it simple to measure HVAC pressure. Using a piezoresistive sensor, the Kimo MP 50/51 measures extremely small pressure variations.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.5% of reading +/-2 mmH2 O |
Display | 2 lines, LCD technology, 50 x 36 mm. 1 line of 5 digits with 7 segments (value) 1 line of 5 digits with 16 segments (unit) |
Material | ABS |
Measuring Units | mmH2 O, kPa, inWg, mbar, mmHg, daPa |
Power Supply | 4 batteries AAA LR03 1.5 V |
Protection | IP54 |
Range | -1000 to +1000 mmH2 O |
Resolution | From -200 to +200 mmH2 O: 0.1 mmH2 O. Beyond: 1 mmH2 O |
Response Time | T63 = 0.3 s |
Storage Temperature | -20 to +80 °C |
Weight | 200 g |
Easy to use
Hold function
Manual autozero
Auto shut-off: 20 minutes
