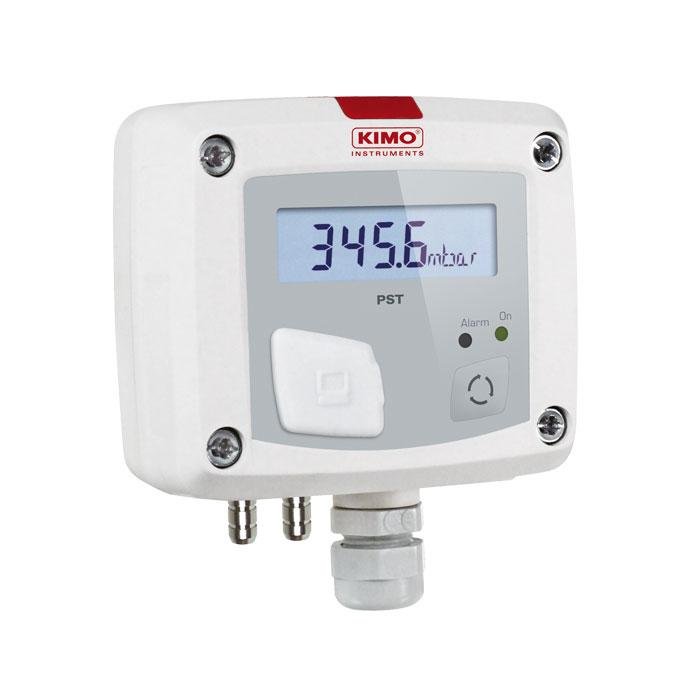

Manostat PST with measuring range from -2000 - +2000 mbar
A manostat is a pressure gauge with a switch built into the body. The switch initiates an electrical contact and stops the machine on which it is wired when a certain amount of pressure is applied. The Manostat precision pressure regulators from Sauermann are developed for sensitive pressure control applications and have proven to be extremely reliable and durable in thousands of applications.
- Specifications
- Features
- Downloads
| Accuracy | +/-1.5% of reading +/-3 mbar |
| Brand | Sauermann |
| IP PROTECTION RATING | IP65 |
| Operating Temperature | 0.00 °C to 50.00 °C |
| Part number | PST-15 |
| Power Supply | 24 Vac/Vdc +/-10% |
| Range | -2000 - +2000 mbar |
| Storage Temperature | -10.00 °C to 70.00 °C |
| Type | Differential pressure |
RCR relay output 3A/240 Vac (NC), power supply 24 Vac/Vdc
• ABS V0 IP65 housing
• “¼ turn” system mounting with wall-mount plate
• Housing with simplified mounting system
