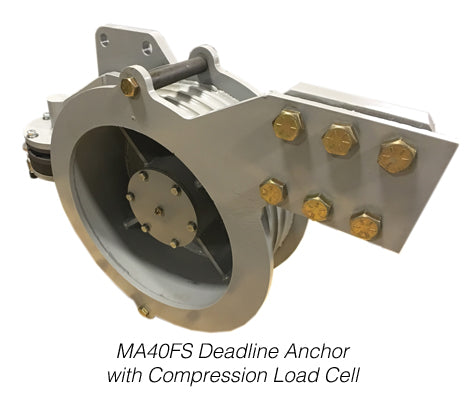

Matherne MA40FS | Deadline Anchor | 45,000 lbs Rated Pull, 16 in Drum
Part Number : MA40FS
The Matherne MA40FS is a deadline anchor rated for 45,000 lbs deadline pull, built around a 16 in drum and a 16.1 sq in compression load sensor. It takes 7/8 in, 1 in, 1-1/8 in and 1-1/4 in wirelines. The anchor is welded from high-grade structural steel and proof-tested twice to 150% of rated capacity with the largest cable size it is designed for: once with the load cell fitted and once without, loaded against the stop.
Key features
- Centre-point mounted, machine-grooved drum
- Aluminium bronze wireline clamp inserts grip the cable without damaging it
- Tapered roller anti-friction bearings and heat-treated alloy shaft
- Sandblasted, zinc-rich primer and heavy-duty industrial enamel finish
- Fixed with four 1 in Grade 8 bolts; approx. 365 lbs
Ordering specifications: rig size, derrick capacity in pounds, drilling wireline size and number of lines strung.
For pricing, please contact our experts.
