Matherne Electronic Pressure Gauge (E-Gauge) | 6 in Dial, up to 30,000 psi

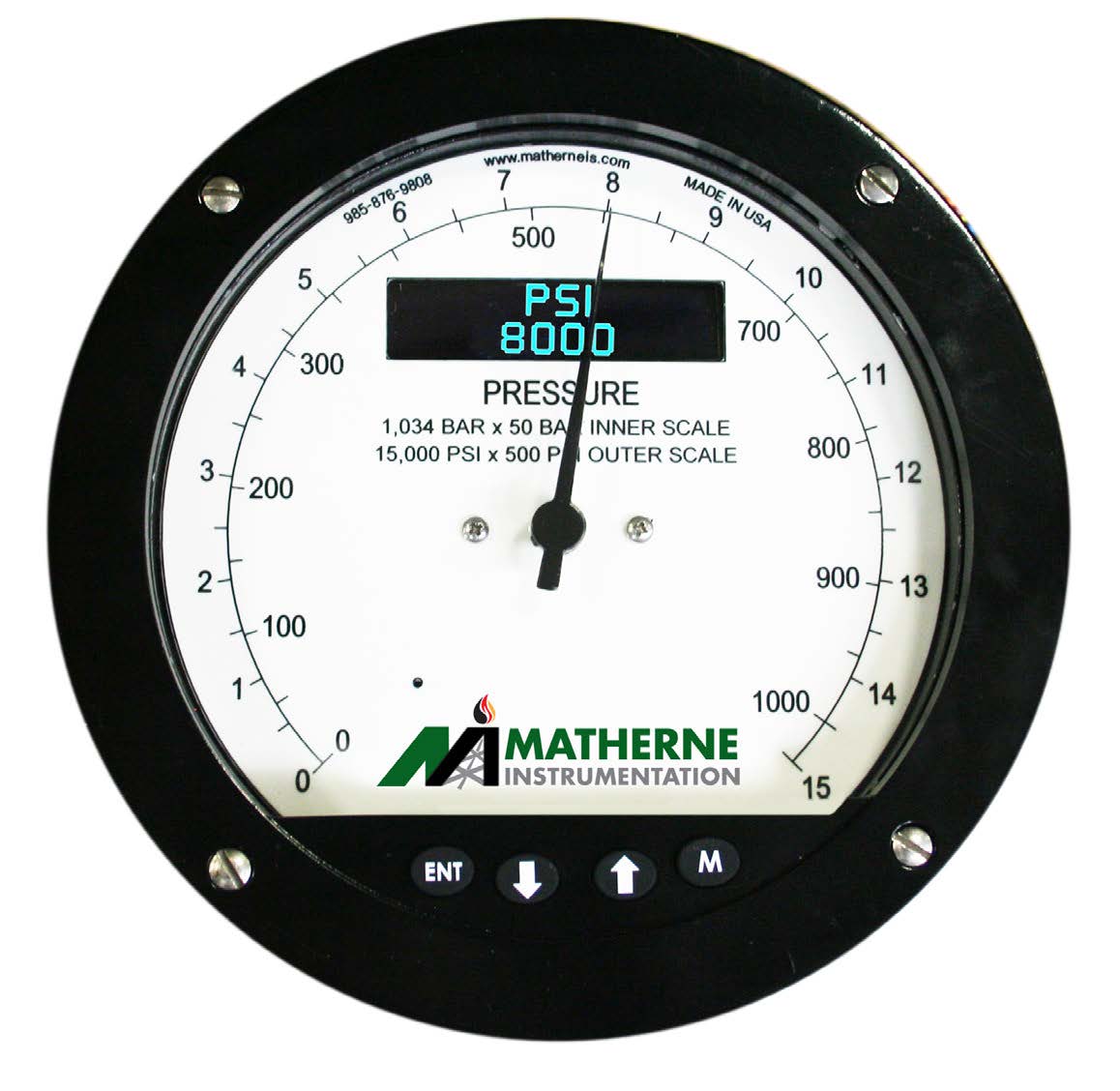

The Matherne E-Gauge pairs a familiar 6 in analog dial with a digital readout, giving a quick visual check from a distance and a precise value up close. It is built for rig-floor use in pumping, cementing and choke measurement, with standard capacities up to 30,000 psi. The gauge runs on 12-36 VDC and accepts 4-20 mA, 0-5 VDC, 0-10 VDC or 3 mV/V transducer signals.
Key features
- Digital readout selectable in psi, MPa, kPa or bar; dial dual scales in kg/cm², MPa, kPa and bar
- Adjustable high/low alarm set points with relay
- Over-pressure shutdown that stops pumps at the set point
- User-adjustable LED backlighting and integral keypad
- Push-button zero adjustment

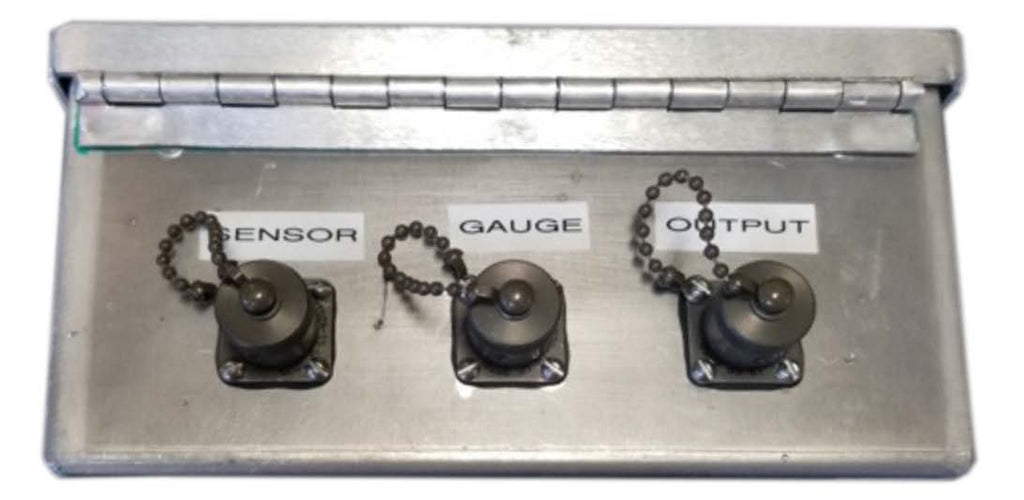

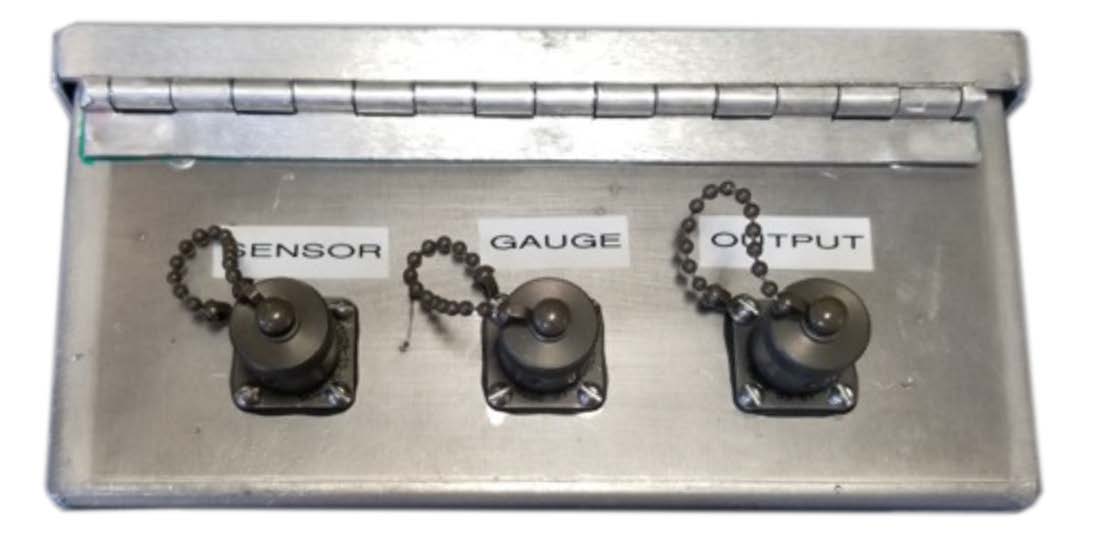

- Intrinsically safe option (additional barrier required) and optional splitter box for multi-gauge installations
Ordering specifications: pressure range, signal input requirement, connector type and cable length (if required). Special connectors are available on request.
For pricing, please contact our experts.
