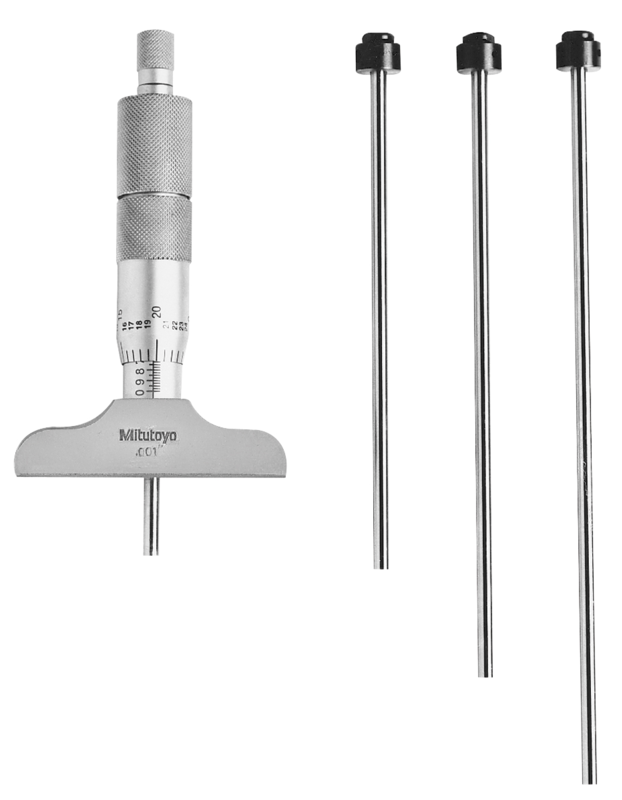

Name: Mitutoyo 129-127 Depth Micrometer, Interchangeable Rods 0-4", 2.5" Base
Brand: Mitutoyo
SKU: 129-127
Availability: OutOfStock

Part Number : 129-127

This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:

ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement
The ratchet stop provides constant measuring force.
Measuring rod lock.

Availability: Sold out

Free UAE shipping available

Base	Hardened tool steel
Delivered	Including box and key
Flatness of measuring face (rod)	0.3 µm
Flatness of reference surface (base)	1.3 µm for 63.5 mm
Graduation	0.001
Inch-Metric	Inch
Mass (main unit)	310 g
Measuring span	25 mm
Measuring surfaces	Hardened, precision ground, micro-lap finish
Micrometer Head Feed (0-25 mm)	+/-3 µm
Number of rods	4
Scale	Thimble and sleeve satin chrome finish ƒ ̧18 mm
Spindle pitch	0.5 mm, with spindle lock
Zero point errors of rods	+/-4 µm (0-150 mm)

This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:

ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement
The ratchet stop provides constant measuring force.
Measuring rod lock.

Mitutoyo 129-127 Depth Micrometer, Interchangeable Rods 0-4", 2.5" Base

Mitutoyo 129-127 Depth Micrometer, Interchangeable Rods 0-4", 2.5" Base
