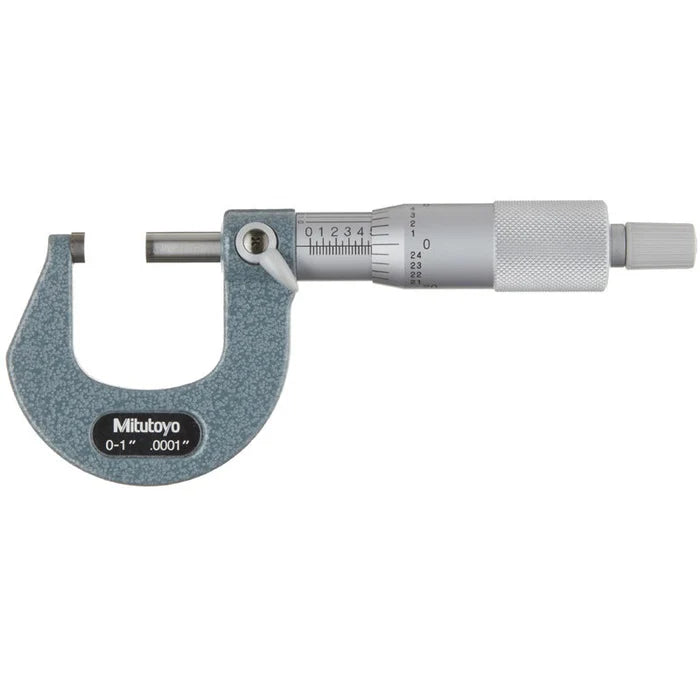

Mitutoyo 103-260 | Outside Micrometer | 0-1" Range, ±0.0001" Accuracy
The Mitutoyo 103-260 is a 0 to 1 inch outside micrometer from Series 103, reading in 0.0001 in steps with ±0.0001 in accuracy. Its ratchet stop gives the same contact force on each reading, so results repeat on both metal and non-metal parts.
- Range 0-1″
- ±0.0001″ accuracy
- 0.0001″ graduations
- Ratchet-stop mechanism for constant measuring force
- Light 175 g frame
- Specifications
| Part Number | 103-260 |
| Brand | Mitutoyo |
| Series | 103 |
| Range | 0-1″ |
| Mass | 175 g |
| Graduation | 0.0001″ |
| Accuracy | ±0.0001″ |
| Force Control | Ratchet stop |
