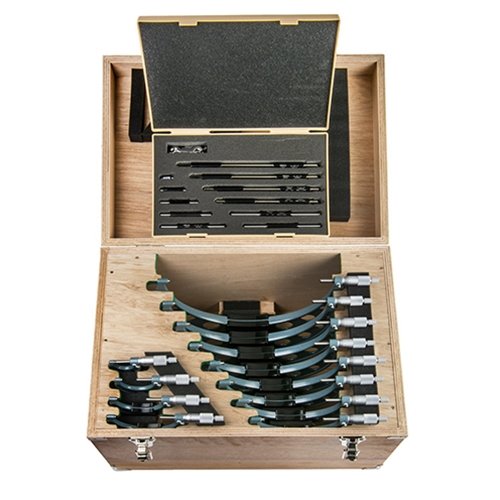

Mitutoyo 103-914-50 | Outside Micrometer Set | 0-300 mm, 0.01 mm, 12 pieces
Part Number : 103-914-50
The Mitutoyo 103-914-50 is a 12-piece outside micrometer set covering 0-300 mm in 25 mm steps, each micrometer graduated in 0.01 mm. It contains the micrometers of sets 103-913-50 and 103-915-10 (0-25 mm up to 275-300 mm) plus 11 setting standards, all with ratchet stops for constant measuring force and repeatable readings.
- 12 micrometers covering 0-300 mm, 0.01 mm graduation
- Accuracy ±2 µm up to 75 mm, ±3 µm to 150 mm, ±4 µm to 225 mm, ±5 µm to 300 mm
- Carbide-tipped faces: flatness 0.6 µm, parallelism (2+R/100) µm
- ø6.35 mm spindle with spindle lock, 0.5 mm pitch on set 103-914-50
- Baked-enamel frames; 103-914-50 set weight 9300 g
- 103-914-50 is delivered in a box with 11 setting standards and a key
Free UAE shipping available
For pricing, please contact our experts.
