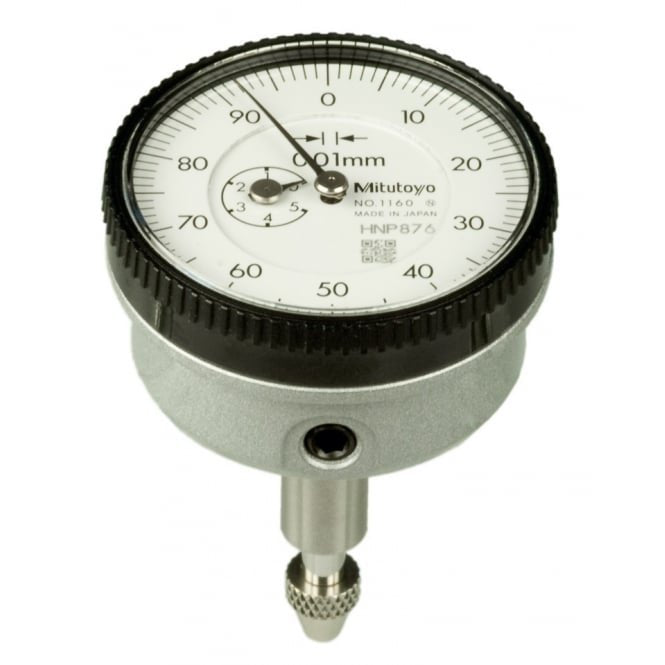

Mitutoyo 1160T Back Plunger Dial Indicator Range 5mm, Graduation 0.01 mm
A Mitutoyo multi-revolution, back-plunger type indicator suited to measurement applications on measuring jigs and similar.
Back plunger type dial gauges are suitable for mounting onto levelling machine tool tables or inspection jigs, and for use in situations where standard dial gauges are difficult to read.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-14 |
Brand | Mitutoyo |
Data Output | No |
Dial Reading | 0-100 |
Display Type | Non-digital |
Graduations | 0.01mm |
Measuring Force | 1.4N or less |
Measuring Units | Millimetre |
Range | 5mm (1mm) |
SKU | 1160T |
Type | Plunger |
Back plunger type dial gauges are suitable for mounting onto levelling machine tool tables or inspection jigs, and for use in situations where standard dial gauges are difficult to read.
