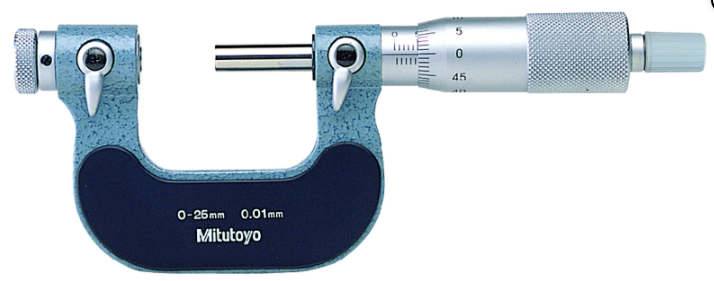

Mitutoyo 126-125 | Screw Thread Micrometer, Interchangeable Tips | 0-25 mm, 0.01 mm, ±4 µm
With a 0-25 mm range and 0.01 mm graduation, the Mitutoyo 126-125 screw thread micrometer accepts optional tips in matched pairs. Fitting the right pair lets the 126-125 read metric/unified or Whitworth pitch diameters directly, within ±4 µm.
- 0.01 mm graduation across 0-25 mm
- Accuracy within ±4 µm
- Ratchet stop for even force
- 0.5 mm pitch Ø6.35 mm spindle with lock for the 126-125
- 240 g unit, Ø18 mm satin chrome thimble
- Setting standard not included (range starts at 0)
- Specifications
- Features
- Downloads
| Part Number | 126-125 |
| Brand | Mitutoyo |
| Type | Screw thread micrometer, interchangeable tips |
| Range | 0-25 mm |
| Graduation | 0.01 mm |
| Units | Metric |
| Measuring Force | Ratchet stop |
| Tips | Interchangeable anvils/spindle tips (optional) |
| Setting Standard | Not included |
| Display | Analogue |
| Spindle | Ø6.35 mm, with lock, 0.5 mm pitch |
| Thimble | Ø18 mm, satin chrome |
| Mass | 240 g |
| Accuracy | ±4 µm |
This Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.
A metric (unified) 60º setting standard is included with all models except those measuring from 0.
To measure Metric/Unified or Whitworth threads, anvils and spindle points are interchangeable in matched pairs.
• Measurement of screw pitch diameter directly (no need for calculation).
• Includes a ratchet stop for accurate force measurement.
• Interchangeable anvils or spindle tips are available as an option.
