Name: Mitutoyo 137-203 Tubular Inside Micrometer, Hardened Face 50-500mm
Brand: Mitutoyo
SKU: 137-203
Availability: OutOfStock

Part Number : 137-203

This is an extension rod type inside micrometer that offers you the following benefits:

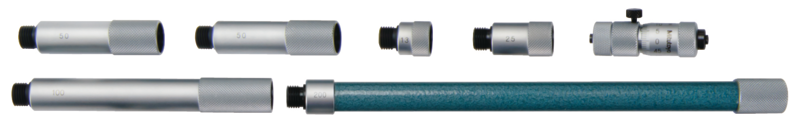

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Availability: Sold out

Accuracy	+/-(3+n+L/50) µm n = Number of rod, L = Maximum measuring length (mm)
Analog/Digital	Analog
Delivered	Including box, key
Extension rod	6 (13, 25, 50 (2 pcs.), 100, 200 mm)
Extension	: ƒ ̧12,5 mm
Graduation	0.01mm
Inch-Metric	Metric
Mass (main unit)	460 g
Measuring span	13 mm or 0.5
Measuring spindle	Spindle pitch 0.5 mm
Measuring surfaces	Hardened steel
Range	50 - 500 mm

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Mitutoyo 137-203 Tubular Inside Micrometer, Hardened Face 50-500mm

Mitutoyo 137-203 Tubular Inside Micrometer, Hardened Face 50-500mm
