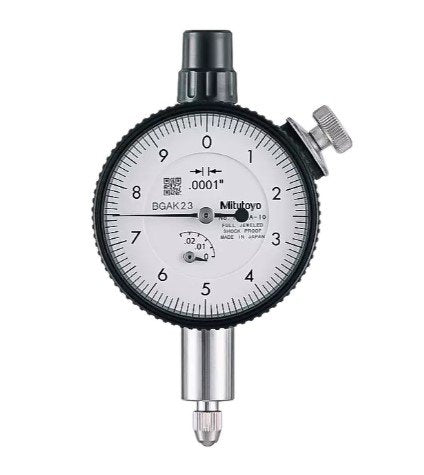

Mitutoyo 1802A-10 | Dial Gauge | 0.025 in Range, 0.0001 in Graduation, Lug Back
Part Number : 1802A-10
The Mitutoyo 1802A-10 is a dial gauge with a 0.025 in range and 0.0001 in graduation. The 1802A-10 has lug-back mounting for stands and fixtures, follows the ANSI/AGD type layout and belongs to Series 1. The 1802A-10 reads in inch units on a 0-10 dial.
- Repeatability ±0.00003 in, hysteresis 0.0001 in
- Dial reading 0-10
- 9.52 mm (0.375 in) stem, 4-48UNF thread, carbide-tipped contact point
- Jewelled bearing
- Measuring force 0.4-1.5 N; weight 95 g
Free UAE shipping available
For pricing, please contact our experts.
