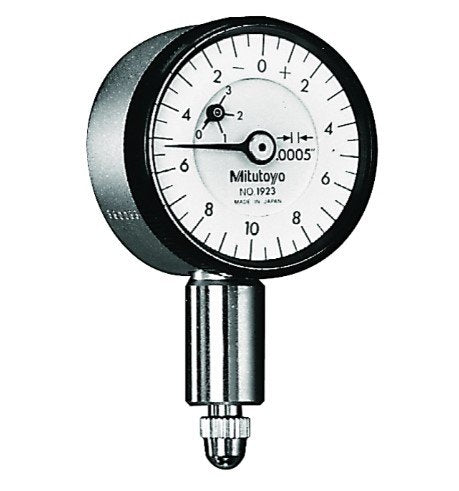

Mitutoyo 1923A-10 | Dial Gauge | 0.05 in Range, 0.0005 in Graduation, Lug Back
Part Number : 1923A-10
This Mitutoyo dial gauge, part number 1923A-10, covers 0.05 in at 0.0005 in graduation. The 1923A-10 has a lug back for fixing to stands or fixtures, follows the ANSI/AGD type layout and belongs to Series 1. The 1923A-10 reads in inch units on a 0-10-0 dial.
- Repeatability ±0.0001 in, hysteresis 0.00016 in
- Dial reading 0-10-0
- 9.52 mm (0.375 in) stem, 4-48UNF thread, carbide-tipped contact point
- Jewelled bearing
- Measuring force 0.3-1.8 N; weight 56 g
Free UAE shipping available
For pricing, please contact our experts.
