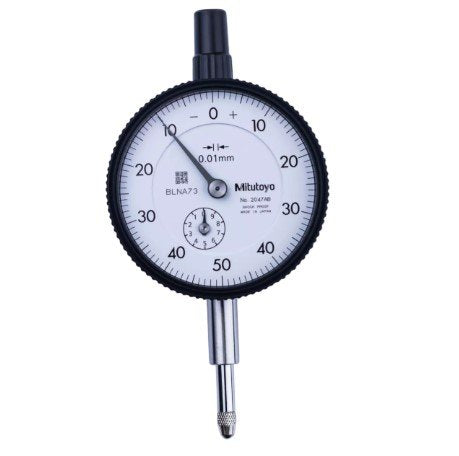

Mitutoyo 2047AB-11 | Flat Back Dial Gauge | 10 mm, 0.01 mm, ANSI/AGD
Part Number : 2047AB-11
Mitutoyo's 2047AB-11 flat back dial gauge covers 10 mm at a graduation of 0.01 mm. Built to ANSI/AGD Type 2, it is used for linear measurement and inspection, and the flat back lets it sit on flat surfaces or magnetic bases (2047AB-11).
- Measuring force of 0.4 - 1.4 N on the 2047AB-11; dial reads 0-50-0
- 2047AB-11 repeatability: ±3 µm; hysteresis: 3 µm
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2047AB-11
- Jewelled bearing (2047AB-11)
- Carbide contact point fitted to the 2047AB-11
- 2047AB-11: scratch-resistant, anti-glare crystal
Free UAE shipping available
For pricing, please contact our experts.
