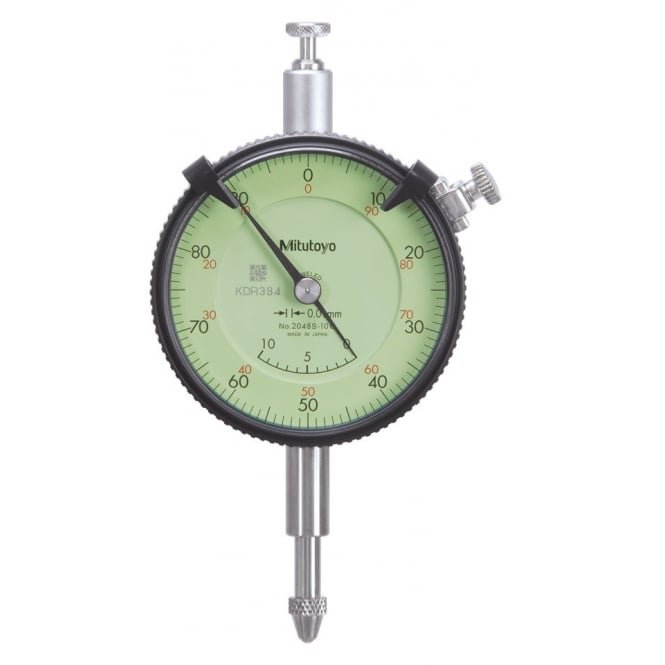

Mitutoyo 2048S-10 Adjustable-Hand Dial Indicator Range 10mm Graduation 0.01 mm
A Mitutoyo multi-revolution dial indicator suited to general measurement applications where an ability to adjust the position of the hands without affecting the position of the plunger is required. The dual-reading scale aids measurement in both directions.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-15 |
Brand | Mitutoyo |
Data Output | No |
Dial Reading | 0-100 |
Display Type | Non-digital |
Graduations | 0.01mm |
Measuring Force | 1.4N or less |
Measuring Units | Millimetre |
Range | 10mm (1mm) |
SKU | 2048S-10 |
Type | Plunger |
The hand position can be adjusted independently of the position of the plunger by rotating the top knob.
