Part Number : 2050AB-01

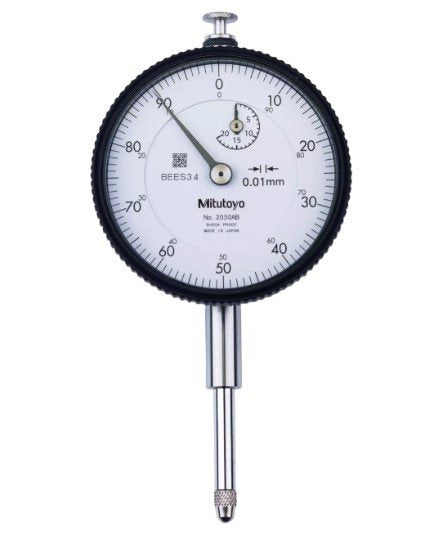

The Mitutoyo 2050AB-01 is a high-precision dial gauge designed for accurate linear measurements. It offers a 20 mm measuring range with a 0.01 mm graduation, making it suitable for fine inspection tasks. The flat back design allows for stable mounting on flat surfaces or magnetic bases, ensuring reliable measurements. Built to ANSI/AGD Type 2 standards, it ensures compatibility with standard fixtures and holders. The gauge features a clear, easy-to-read dial, enhancing visibility and reducing reading errors. Its durable construction includes a scratch-resistant, anti-glare crystal for long-lasting clarity.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Dial Reading	+/-0-100
Graduation	0.01 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measuring Force	0.4 - 2 N
Range	20 mm
Repeatability	+/-3 µm
Stem Dia	9.52 mm Or 0.375 Inch
Thread type	4-48UNF
Type	ANSI/AGD Standard
Type	Dial Gauge

20 mm Measuring Range – Extended range ideal for a variety of precision applications.
0.01 mm Graduation – Provides fine resolution for accurate and detailed readings.
Flat Back Design – Ensures secure and stable mounting on flat or magnetic surfaces.
ANSI/AGD Type 2 Compliant – Built to industry standards for compatibility with indicator holders and setups.
Clear, Easy-to-Read Dial – Enhances readability and minimizes the risk of operator error.
Durable Construction – Features a scratch-resistant, anti-glare crystal for long-term use in industrial environments.
