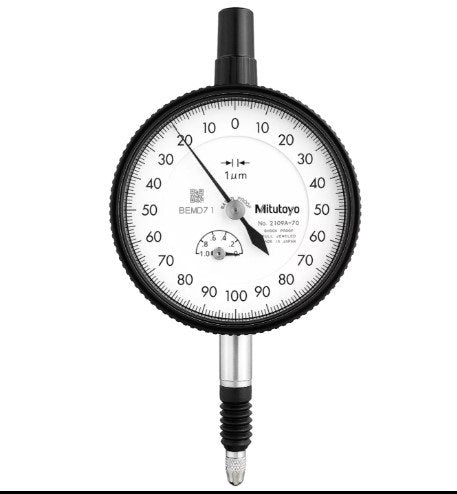

Mitutoyo 2109A-70 | Lug Back Dial Gauge | 1 mm, 0.001 mm, ISO
Part Number : 2109A-70
Reading in 0.001 mm steps across 1 mm of travel, the Mitutoyo 2109A-70 is a lug back dial gauge. Built to ISO and part of Series 2, it is used for linear measurement and inspection, and its lug back provides secure mounting (2109A-70).
- Dial reading 0.0-100.0-0.0; measuring force 0.4 - 2 N
- Hysteresis 2 µm and repeatability 1.0 µm
- M 2.5 x 0.45 mm thread and 8.0 mm stem on the 2109A-70
- Jewelled bearing and IP64-rated protection against dust and water splashes
- Weighs 149 g with a carbide contact point
- Analogue metric dial on the 2109A-70
Free UAE shipping available
For pricing, please contact our experts.
