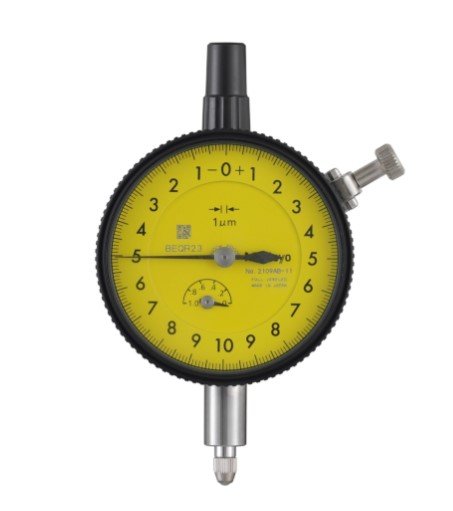

Mitutoyo 2109AB-11 | Flat Back Dial Gauge | 1 mm, 0.001 mm, ANSI/AGD
Part Number : 2109AB-11
With 1 mm of plunger travel and 0.001 mm graduations, the 2109AB-11 from Mitutoyo is a flat back dial gauge. Built to ANSI/AGD Type 2, it is used for linear measurement and inspection, and the flat back lets it sit on flat surfaces or magnetic bases (2109AB-11).
- Measuring force of 0.4 - 1.5 N on the 2109AB-11; dial reads 0-10-0
- Repeatability ±0.3 µm, hysteresis 2 µm
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2109AB-11
- Jewelled bearing (2109AB-11)
- Carbide contact point fitted to the 2109AB-11
- 2109AB-11: scratch-resistant, anti-glare crystal
Free UAE shipping available
For pricing, please contact our experts.
