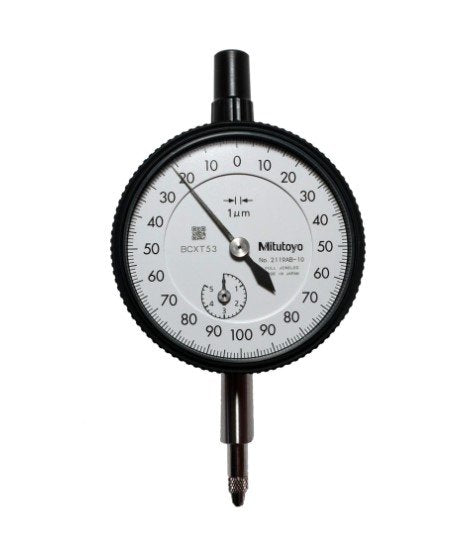

Mitutoyo 2119AB-11 | Flat Back Dial Gauge | 5 mm, 0.001 mm, ANSI/AGD
Part Number : 2119AB-11
The Mitutoyo 2119AB-11 is a flat back dial gauge with a 5 mm measuring range and 0.001 mm graduation. Built to ANSI/AGD Type 2, it is used for linear measurement and inspection, and the flat back lets it sit on flat surfaces or magnetic bases (2119AB-11).
- Measuring force of 0.4 - 1.5 N on the 2119AB-11; dial reads 0-10-0
- Repeatability ±0.3 µm, hysteresis 2.5 µm
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2119AB-11
- Jewelled bearing (2119AB-11)
- Carbide contact point fitted to the 2119AB-11
- 2119AB-11: scratch-resistant, anti-glare crystal
Free UAE shipping available
For pricing, please contact our experts.
