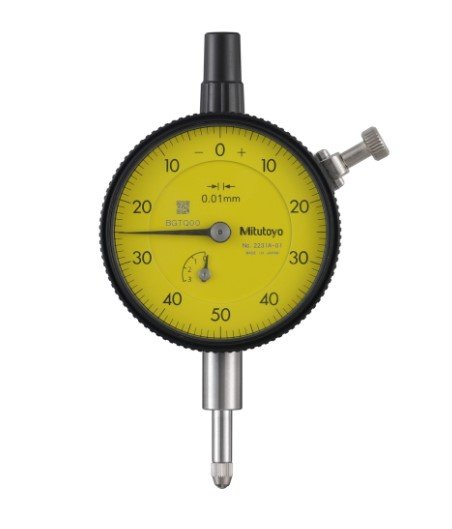

Mitutoyo 2231A-01 | Flat Back Dial Gauge | 2.5 mm, 0.01 mm, ANSI/AGD
Part Number : 2231A-01
The Mitutoyo 2231A-01 is a flat back dial gauge with a 2.5 mm measuring range and 0.01 mm graduation. Built to ANSI/AGD, it is used for linear measurement and inspection, and the flat back lets it sit on flat surfaces or magnetic bases.
- Measuring force of 0.4 - 1.4 N on the 2231A-01; dial reads 0-50-0
- 2231A-01 repeatability: ±3 µm; hysteresis: 3 µm
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2231A-01
- Carbide contact point fitted to the 2231A-01
- 1 mm per revolution scale with 250 divisions in total
- Analogue metric dial on the 2231A-01
