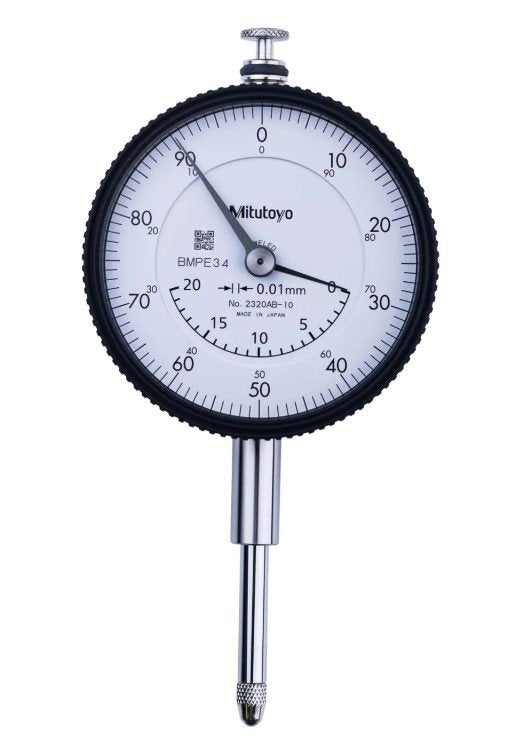

Mitutoyo 2320A-10 | Lug Back Dial Gauge | 20 mm, 0.01 mm, ISO
Part Number : 2320A-10
Reading in 0.01 mm steps across 20 mm of travel, the Mitutoyo 2320A-10 is a lug back dial gauge. Built to ISO and part of Series 2, it is used for linear measurement and inspection, and its lug back provides secure mounting (2320A-10).
- Dial reading ±0.0-100.0; measuring force 0.4 - 2 N
- 2320A-10 repeatability: 3.0 µm; hysteresis: 4 µm
- M 2.5 x 0.45 mm thread and 8.0 mm stem on the 2320A-10
- Jewelled bearing and sealed frame against dust, oil and moisture (2320A-10)
- Weighs 150 g with a carbide contact point
- 2320A-10: scratch-resistant crystal
For pricing, please contact our experts.
