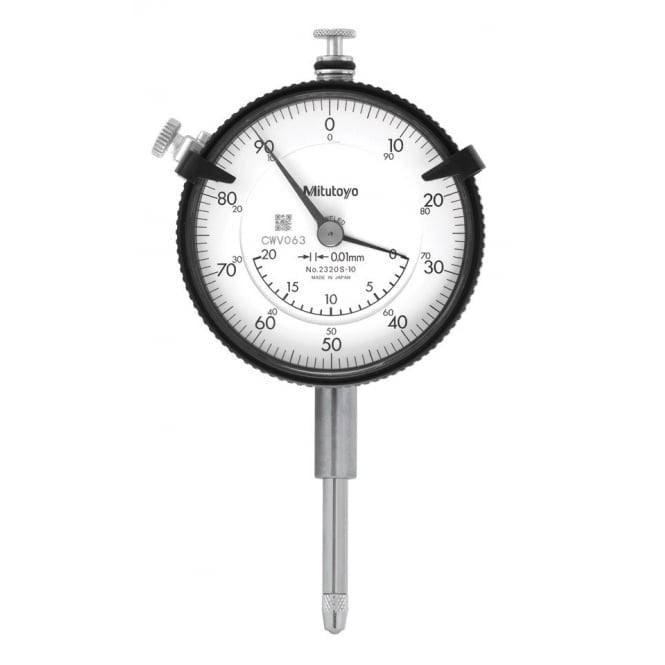

Mitutoyo 2320S-10 Dial Indicator Range 20mm, Graduation 0.01 mm
A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications. The jewelled movement provides lowest friction and stiction for smooth and precise operation and the dual-reading scale aids measurement in both directions.Long stroke dial indicators with a ø57 mm outer frame. All models are equipped with limit markers and a bezel clamp as standard.
• An O-ring is employed to ensure air-tightness between the outer frame and the crystal case to prevent water or oil penetration.
• Both the stem and the plunger are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• A carbide-tipped contact point is employed.
• The grand gear is made of stainless steel with high resistance to wear and deformation.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
• The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools
