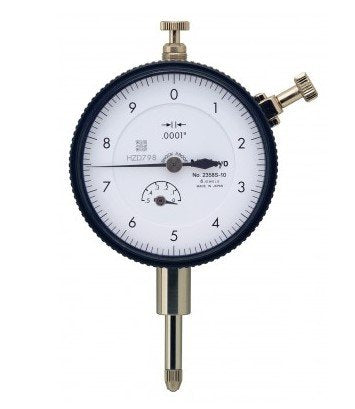

Mitutoyo 2358AB-10 | Flat Back Dial Gauge | 0.5 in, 0.0001 in, ANSI/AGD
Part Number : 2358AB-10
The Mitutoyo 2358AB-10 is a flat back dial gauge with a 0.5 in measuring range and 0.0001 in graduation. Used for linear measurement and inspection, it is built to ANSI/AGD and part of Series 2; it has a flat back.
- Measuring force of 0.4 - 2 N on the 2358AB-10; dial reads 0.0-10.0
- Hysteresis 0.00015 in and repeatability ±0.00003 in
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2358AB-10
- Jewelled bearing (2358AB-10)
- Carbide-tipped contact point; weight 139 g
- Analogue inch dial on the 2358AB-10
Free UAE shipping available
For pricing, please contact our experts.
