Part Number : 2776AB

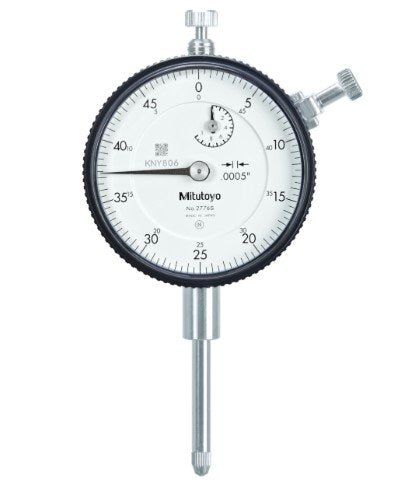

The Mitutoyo 2776AB is a high-precision Series 2 dial indicator designed for accurate linear measurements in industrial applications. It features a flat back design, allowing for secure mounting on various setups. With a 1-inch measuring range and 0.0005-inch graduations, it is ideal for applications requiring tight tolerance measurements. The gauge complies with ANSI/AGD standards, ensuring compatibility with industry-standard holders and accessories. Its hardened stainless steel spindle and carbide contact point provide durability and long-term reliability

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Dial Reading	+/-0.0-50.0
Graduation	0.0005 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Measuring Force	0.4 - 2.5 N
Range	1 Inch
Repeatability	+/-0.0001 Inch
Series	2
Stem Dia	9.52 mm Or 0.375 Inch
Thread type	4.0-48.0UNF
Type	ANSI/AGD Standard
Type	Dial Gauge
Weight	139 g

Precision Measurement: 0.0005-inch graduations with a 1-inch range for accurate measurements.
Flat Back Design: Ensures secure and stable mounting on various setups.
ANSI/AGD Standard Compliance: Meets American Gage Design standards for compatibility with global equipment.
Hardened Stainless Steel Spindle: Provides durability and resistance to wear.
Carbide Contact Point: Ensures long-term reliability and minimal wear.
Optional Accessories: Bezel clamp and lifting lever can be attached to either side without tools.

DOWNLOAD CATALOG
