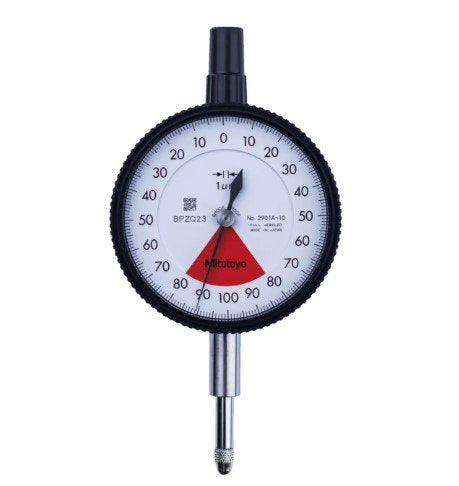

Mitutoyo 2901AB-10 | One-Revolution Dial Indicator | 0.16 mm Range, 0.001 mm Graduation, Flat Back
Part Number : 2901AB-10
Graduated in 0.001 mm steps over a 0.16 mm range, the Mitutoyo 2901AB-10 is a one-revolution dial indicator. Typical work for the 2901AB-10 includes precise linear measurement.
- Series 2, ISO type, flat back; single-revolution 80-0-80 dial avoids miscounted turns
- Jewelled bearings in the movement; 2 µm hysteresis and 1 µm repeatability
- 8 mm stem; carbide-tipped contact point with M2.5 x 0.45 mm thread; shockproof mechanism
- Measuring force of 0.4–1.5 N, stroke of 4.1 mm
- Weighs 140 g
Free UAE shipping available
For pricing, please contact our experts.
