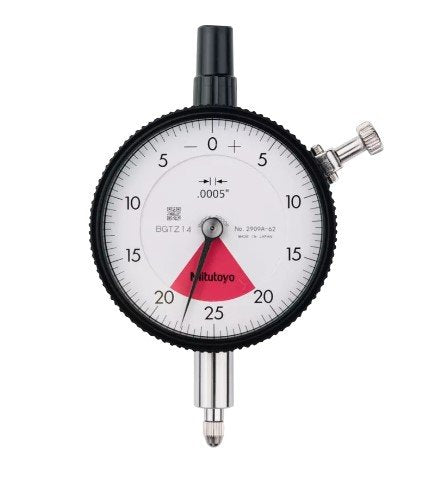

Mitutoyo 2909A-62 | One-Revolution Dial Indicator | 0.04 in Range, 0.0005 in Graduation, Lug Back
Part Number : 2909A-62
The Mitutoyo 2909A-62 is a one-revolution dial indicator with a 0.04 in measuring range and 0.0005 in graduation. The 2909A-62 is intended for precise linear measurement.
- Single-revolution 20-0-20 dial avoids miscounted turns; hysteresis held to 0.00016 in; repeatability ±0.0001 in
- Part of Series 2, conforms to ANSI/AGD type, lug-back case; shockproof and dustproof build
- Measuring force 0.4–2.5 N, 1.9 mm plunger stroke; 9.52 mm (0.375 in) stem and carbide-tipped contact point (4-48 UNF)
- 0.04 in total range; 0.0005 in per division
- Weight 163 g; analogue dial readout
