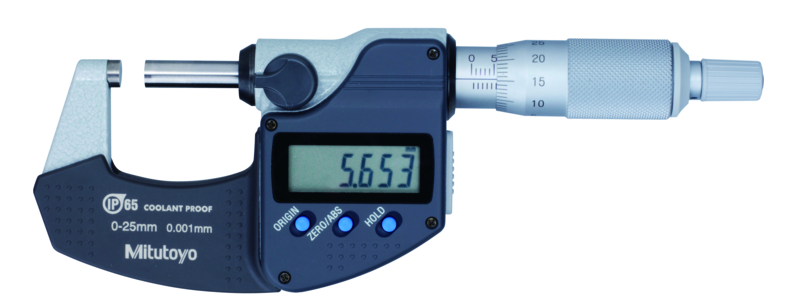

Mitutoyo 293-230-30 | Digital Micrometer IP65 with Data Output | Range 0-25mm,
The ratchet stop thimble mechanism on the Mitutoyo IP65 rated coolant-proof micrometre ensures a consistent measuring force on the spindle for accurate, repeatable measurements. The ratchet thimble and speeder work together to provide for faster spindle feed when measuring a wide range of dimensions, as well as one-handed measurements. With SPC Data Output.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-1 µm |
Analog/Digital | Digital |
Battery Life | Approx. 2.4 years for models ¢°¤100 mm |
Data Output | Yes |
Delivered | Including box, key, 1 battery, setting standard |
Digital step | 0.001 mm |
Flatness | 0.3 µm |
Inch-Metric | Metric |
Mass (main unit) | 270 g |
Measuring spindle | With spindle lock, ƒ ̧6.35 mm, spindle pitch 0.5 mm |
Measuring surfaces | Carbide-tipped, micro-lap finish |
Range | 0 - 25 mm |
Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
ZERO/ABS | Yes |
This IP65 micrometre has excellent precision without data output, is extremely durable, and comes with the following features:
All plastic pieces are made of an oil-resistant substance.
A remarkable 2,4-year battery life
This micrometer's excellent resistance to water and dust allows it to be utilised in machining scenarios where coolant fluid is splashed.
With SPC Data Output
