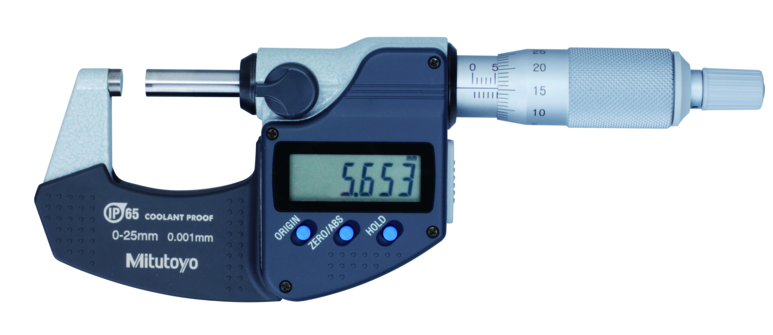

Mitutoyo 293-240-30 | IP65 Digital Outside Micrometer | 0–25 mm, No Output

Name: Mitutoyo 293-240-30 | IP65 Digital Outside Micrometer | 0–25 mm, No Output
Brand: Mitutoyo
SKU: 293-240-30
Price: 630.00 AED
Availability: InStock

Part Number : 293-240-30

The 0–25 mm Mitutoyo 293-240-30 is a Digimatic outside micrometer built to IP65. Rated accuracy is ±1 µm; mass 270 g. All plastic components on the 293-240-30 use an oil-resistant material.

0–25 mm range, without data output
Reads in 0.001 mm steps over 0–25 mm, accurate to ±1 µm
270 g, carbide faces with micro-lap finish; battery approx. 2.4 years
0–25 mm capacity, IP65 protected, lockable spindle
Shipped boxed with key, 1 battery, 0–25 mm range

Availability: in stock

Free UAE shipping available

Mitutoyo 293-240-30 | IP65 Digital Outside Micrometer | 0–25 mm, No Output

Price : AED 630.00 *

5% VAT will be extra

Credit purchase may have different price*

Back to Details

Specifications
Features
Downloads

Part Number	293-240-30
Brand	Mitutoyo
Range	0–25 mm
Accuracy	±1 µm
Digital Step	0.001 mm
Units	Metric
Protection	IP65 (coolant-proof)
Data Output	No
Flatness	0.3 µm
Spindle	ø6.35 mm, pitch 0.5 mm, with lock
Measuring Faces	Carbide-tipped, micro-lap finish
Battery Life	Approx. 2.4 years
Mass	270 g
Supplied With	Box, key, 1 battery

This IP65 micrometre has excellent precision without data output, is extremely durable, and comes with the following features:
All plastic pieces are made of an oil-resistant substance.
A remarkable 2,4-year battery life
This micrometer's excellent resistance to water and dust allows it to be utilised in machining scenarios where coolant fluid is splashed.
