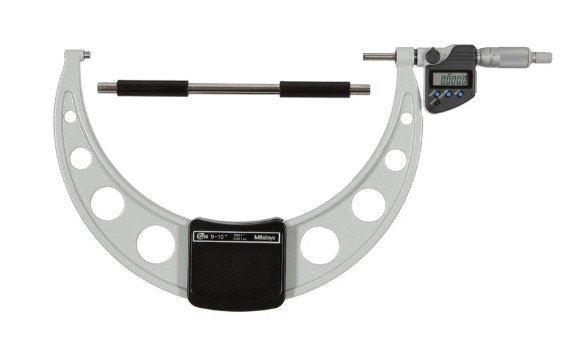

Mitutoyo 293-355-10 | Coolant Proof Micrometer | Series 293 | Accuracy ±.0002 inch | Range 9 inch to 10 inch
The Mitutoyo 293-355-10 is a Coolant Proof Micrometer from Series 293, designed for precise measurements in harsh environments. With an accuracy of ±0.0002 inch, it offers high precision for measuring 9-inch to 10-inch workpieces. The micrometer's coolant-proof design ensures durability, even when exposed to cutting fluids. It features a ratchet stop for consistent measuring force. The microfinished measuring faces resist wear, ensuring long-lasting performance. Ideal for industries that require reliable and accurate measurements under challenging conditions.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-.0002 inch |
Alarm | Low voltage, Counting value composition error |
Battery Life | Approx. 1.2 years |
Battery | SR44 |
Data hold function | Yes |
Data Output | Yes |
Display | LCD |
Flatness | 0.31/4m |
ON/OFF | Automatic |
Protection | IP65 |
Range | 9-inch to 10-inch |
Resolution | 0.001mm, .00005"/0.001mm |
Type | Coolant Proof Micrometer |
- Coolant-Proof Design: Resists damage from cutting fluids and oils.
- Accuracy: ±0.0002 inch for precise measurements.
- Range: Measures 9 inches to 10 inches.
- Ratchet Stop: Ensures consistent measuring force.
- Microfinished Faces: Enhanced wear resistance for durability.
- Durable: Built for long-lasting performance in harsh environments.
