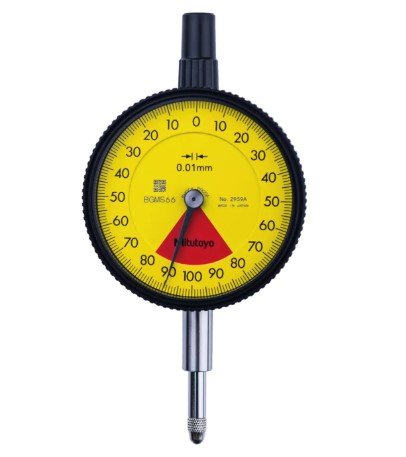

Mitutoyo 2959AB | Dial Gauge | Flat Back | ISO Type | Series 2 | One Revolution | Graduation 0.01mm | Range 1.6 mm
The Mitutoyo 2959AB Dial Gauge is a high-precision, flat back indicator from the ISO-compliant Series 2, designed for accurate and repeatable measurements. Featuring a one-revolution dial, it offers a clear and intuitive reading experience. With a fine graduation of 0.01 mm and a total measuring range of 1.6 mm, it’s ideal for tasks requiring small displacement detection. Built to withstand industrial environments, this dial gauge ensures durability and consistent performance. Its compact design and reliable construction make it a trusted tool in both professional workshops and quality control settings.
- Specifications
- Features
- Downloads
| Analog/Digital | Analog |
| Contact point | Carbide tipped |
| Dial Reading | 80.0-0.0-80.0 |
| Graduation | 0.01 mm |
| Hysteresis | 4 µm |
| Inch-Metric | Metric |
| Measuring Force | 0.4 - 1.4 N |
| Measuring range | 9 µm |
| Range | 1.6 mm |
| Repeatability | 3.0 µm |
| Series | 2 |
| Stem Dia | 8.0 mm |
| Stroke | Plunger: 5 mm |
| Thread type | M 2.5 x 0.45 mm |
| Type | Dial Gauge |
| Type | EN ISO Standard |
| Weight | 136 g |
- Flat Back Design – Ideal for mounting on surfaces or stands for stable measurement.
- One-Revolution Dial – Easy-to-read dial simplifies tracking of small measurements.
- 0.01 mm Graduation – Offers high-resolution precision for detailed inspection work.
- 1.6 mm Measuring Range – Suitable for short-range, fine displacement measurements.
- ISO-Compliant (Series 2) – Meets international standards for quality and accuracy.
- Durable Build – Designed for long-term use in industrial and workshop environments.
