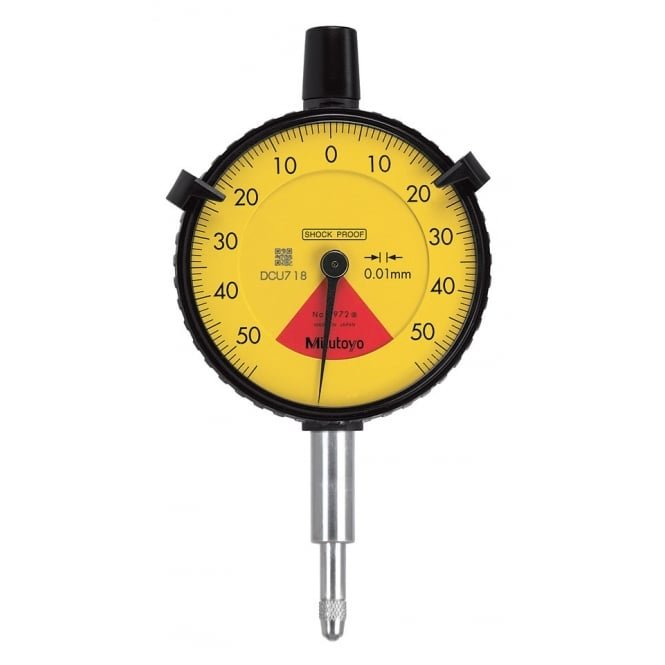

Mitutoyo 2972 Standard One Revolution Dial Indicator Range 1mm, Graduation 0.01mm
A Mitutoyo one-revolution, balanced-dial indicator suited to comparison measurement applications on measuring jigs and similar.
Excellent water- and drip-proof characteristics (IP43).
• Smooth movement thanks to the improved design of bush and stem.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-12 |
Brand | Mitutoyo |
Data Output | No |
Dial Reading | 50-0-50 |
Display Type | Non-digital |
Graduations | 0.01mm |
Measuring Force | 1.4N or less |
Measuring Units | Millimetre |
Range | 1mm |
SKU | 2972 |
Type | Plunger |
Excellent water- and drip-proof characteristics (IP43).
• Smooth movement thanks to the improved design of bush and stem.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack
