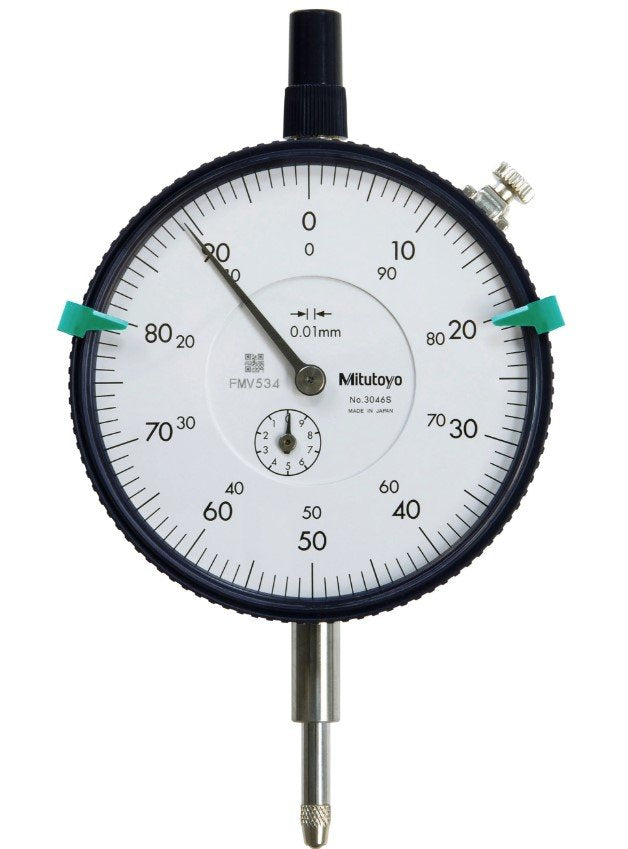

Mitutoyo 3046SB | Dial Indicator | 10 mm Range, 0.01 mm Graduation, Flat Back
Mitutoyo's 3046SB dial indicator covers 10 mm with a 0.01 mm graduation. Use the 3046SB for precise linear measurement, quality control and inspection.
- Part of Series 3, flat back for flush mounting; hysteresis held to 3 µm; repeatability 3 µm
- 8 mm stem and carbide-tipped contact point (M2.5 x 0.45 mm); analogue dial readout
- 0.01 mm per division; weight 237 g; range 10 mm
- Specifications
- Features
- Downloads
| Part Number | 3046SB |
| Brand | Mitutoyo |
| Series | 3 |
| Range | 10 mm (0.394 in) |
| Graduation | 0.01 mm |
| Hysteresis | 3 µm |
| Repeatability | 3 µm |
| Stem Diameter | 8 mm (0.315 in) |
| Back | Flat back |
| Contact Point | Carbide tipped, M2.5 x 0.45 mm thread |
| Weight | 237 g |
- Type: Dial Indicator with Flat Back for secure and stable mounting.
- Series 3: Designed for robust, general-purpose applications with a larger dial face for better readability.
- Graduation: 0.01 mm, ensuring precise and accurate measurements.
- Measuring Range: 10 mm, suitable for a wide range of industrial and inspection tasks.
- Shockproof Mechanism: Protects internal gear movement from sudden impacts.
- Durable Construction: High-quality materials for long-lasting use in workshop environments.
- Jeweled Bearings: Enhance accuracy and reduce wear over time.
