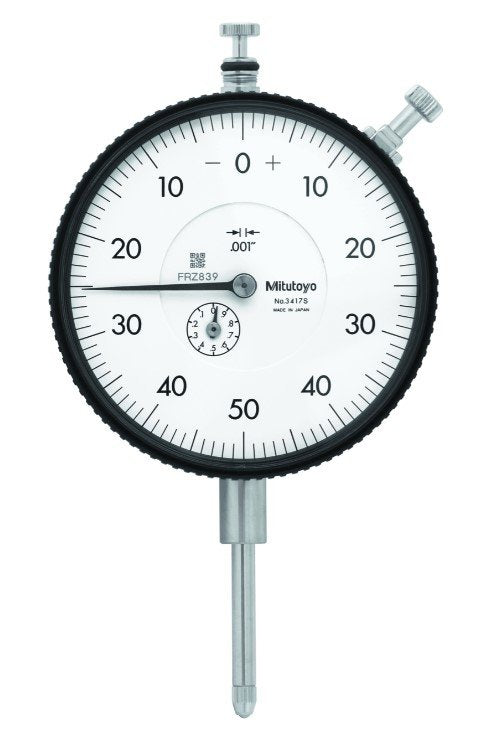

Part Number : 3417AB

Mitutoyo 3417AB Dial Gauge is designed for precise measurements in industrial applications. Features a Flat Back for secure and stable mounting in fixtures or gauges. Built to ANSI/AGD Type standards for consistent quality and universal compatibility. Part of Series 3, with a Graduation of 0.001 inch for high-resolution readings. Provides a Range of 1 inch, ideal for a variety of alignment and inspection tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4-48UNF
Dial Reading	0-50-0
Digital/Analog	Analog
Graduation	0.001 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Mass (main unit)	258 g
Measuring depth max. L	0.4 - 1.8 N
Range	1 Inch
Repeatability	+/-0.0002 Inch
Series	3
Stem Dia	9.52 mm Or 0.375 Inch
Type	Dial Gauge

Model: 3417AB from Mitutoyo Series 3
Range: 1 inch – suitable for longer measurement ranges
Graduation: 0.001 inch – offers fine, high-precision resolution
Back Type: Flat Back – perfect for stable mounting in various setups
Standard: Meets ANSI/AGD Type specifications for compatibility and performance
Dial Face: Easy-to-read with high-contrast markings for clarity
Build Quality: Rugged and durable for industrial use, ensuring long-lasting performance
