Part Number : 3426A-19

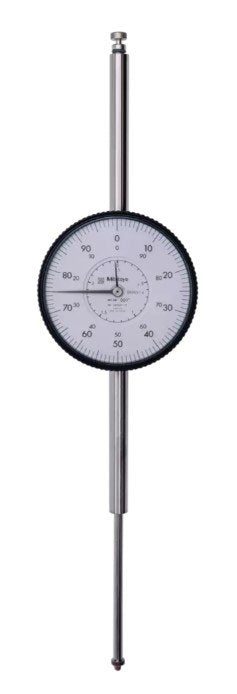

The Mitutoyo 3426A-19 is a high-precision dial gauge designed for accurate measurements in industrial and laboratory settings. It features a lug back design for secure mounting on various holders or stands. With a 0.001 inch graduation and a 3 inch range, it is perfect for applications requiring detailed and broad measurement capabilities. The gauge incorporates jeweled bearings for smooth and durable operation, ensuring long-term reliability. Compliant with ANSI/AGD Type standards, it guarantees compatibility with industry-standard measurement systems.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4.0-48.0UNF
Dial Reading	0.1 inch
Digital/Analog	Analog
Graduation	0.001 inch
Hysteresis	0.00033 inch
Inch-Metric	Inch
Mass (main unit)	340 g
Measuring Force	0.4 - 3 N
Range	3 inch
Repeatability	+/-0.0002 inch
Series	3
Stem Dia	9.52 mm Or 0.375 inch
Type	Dial Gauge

Type: Dial Gauge with Lug Back, facilitating versatile mounting options.
Series: Part of Series 3, featuring a large, easy-to-read dial face with a diameter of 78 mm.
Graduation: 0.001 inch, providing high-resolution measurements suitable for precision tasks.
Measuring Range: 3 inches, ideal for applications requiring extended measurement capacity.
Accuracy: ±0.005 inch, ensuring reliable and consistent measurements.
Dial Reading: 0-100, allowing for clear and straightforward interpretation of measurements.
Shockproof Design: Equipped with a shockproof mechanism to protect internal components from sudden impacts.
Jeweled Bearing: Incorporates a jeweled bearing for smooth and precise movement, enhancing durability.
Stem Diameter: 3/8 inch (9.7 mm), compatible with standard mounting fixtures.
Measuring Force: 3.0 N or less, minimizing the risk of measurement errors due to excessive force.
Compliance: Conforms to ANSI/AGD standards, ensuring compatibility with standard accessories and fixtures.
Additional Features: Supplied with limit markers and a bezel clamp as standard, and delivered with a certificate of inspection.
