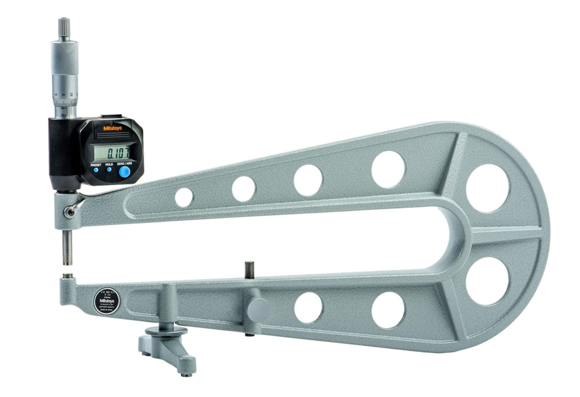

Mitutoyo 389-714 Digital Sheet Metal Micrometer Inch/Metric, 0-1", 12" Throat
This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
This micrometer's broad throat depth makes it excellent for measuring sheet metal thickness at a distance from the edge.
• Carbide measuring faces.
• Includes a ratchet stop for accurate force measurement.
• Flat-Flat, Spherical-Flat, and Spherical-Spherical measurement faces
- Specifications
- Features
- Downloads
| Analog/Digital | Digital |
| Battery Life | Approx. 1.8 years |
| Data Output | Yes |
| Delivered | Including box, key, 1 battery |
| Digital step | 0.00005 |
| Flatness | 0.00004 |
| Inch-Metric | Inch/Metric |
| Mass (main unit) | 2750 g |
| Measuring spindle | With spindle lock, ƒ ̧8 mm, spindle pitch 0.635 mm |
| Measuring surfaces | Carbide-tipped, micro-lap finish |
| Scale type | Thimble and sleeve satin chrome finish, ƒ ̧21 mm |
| Scale | Thimble and sleeve satin chrome finish, ƒ ̧21 mm |
| ZERO/ABS | Yes |
This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
This micrometer's broad throat depth makes it excellent for measuring sheet metal thickness at a distance from the edge.
• Carbide measuring faces.
• Includes a ratchet stop for accurate force measurement.
• Flat-Flat, Spherical-Flat, and Spherical-Spherical measurement faces
Related Products

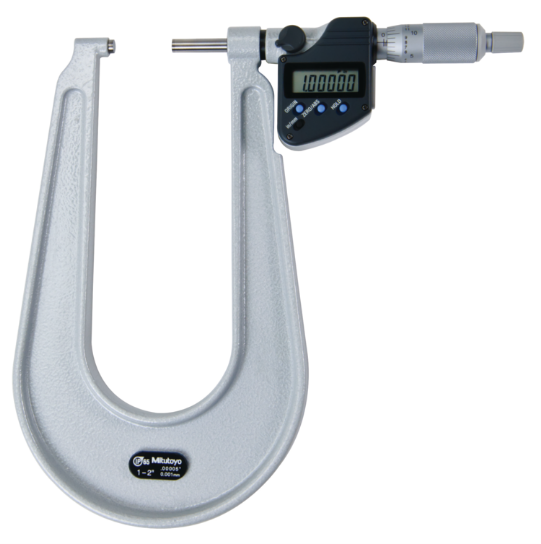

Mitutoyo 389-372-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Spherical Anvil/Spindle
Mitutoyo 389-372-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Spherical Anvil/Spindle

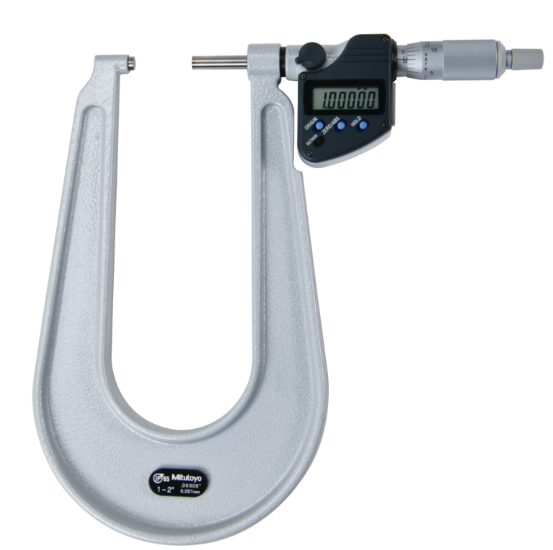

Mitutoyo 389-362-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Spherical Anvil
Mitutoyo 389-362-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Spherical Anvil
Mitutoyo 389-352-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Flat Anvil/Spindle
Mitutoyo 389-352-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 1-2", Flat Anvil/Spindle

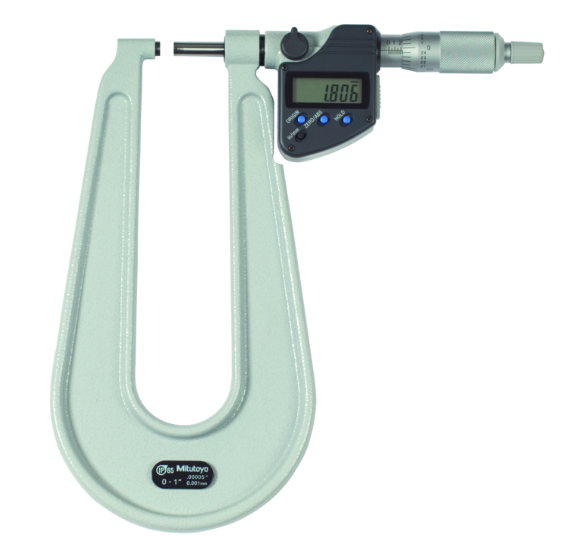

Mitutoyo 389-371-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil/Spindle
Mitutoyo 389-371-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil/Spindle

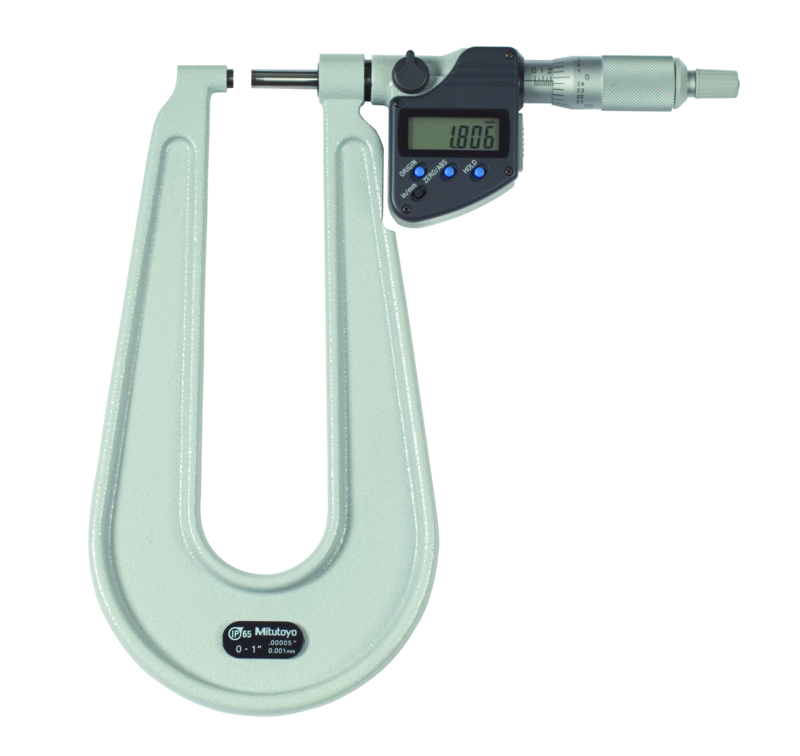

Mitutoyo 389-361-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil
Mitutoyo 389-361-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Spherical Anvil

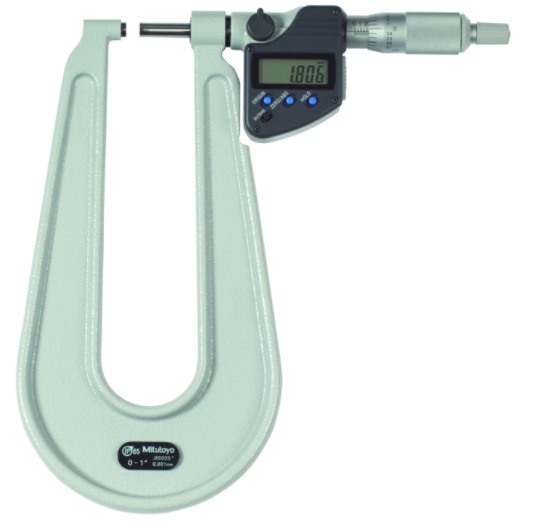

Mitutoyo 389-351-30 Digital Sheet Metal Micrometer IP65 Inch/Metric, 0-1", Flat Anvil/Spindle
