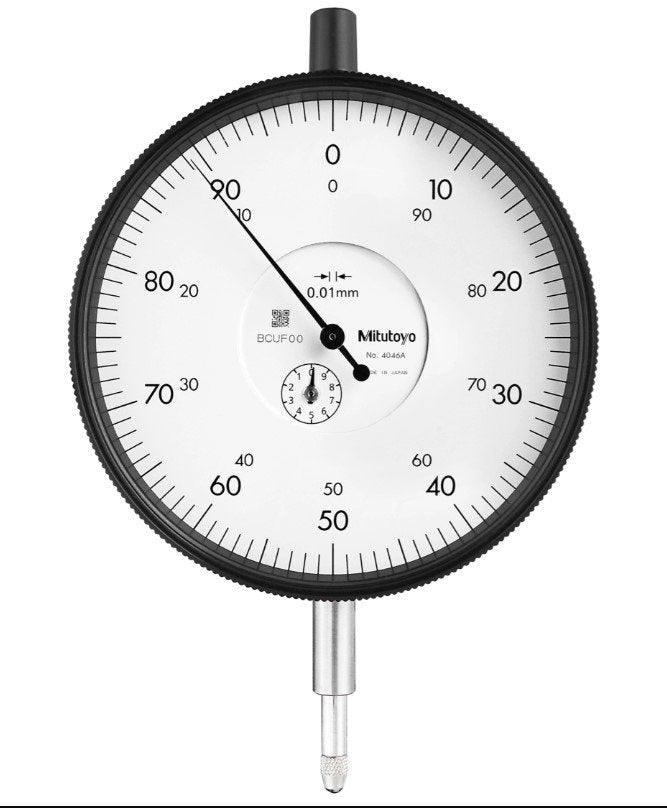

Mitutoyo 4046AB | Dial Gauge | Flat Back | ISO Type | Series 4 | Graduation 0.01 mm | Range 10 mm
Mitutoyo 4046AB Dial Gauge is designed for precise measurements in various applications. Features a Flat Back design, allowing for secure and stable mounting on fixtures or machines. Conforms to ISO Type standards, ensuring consistent quality and performance. Part of Series 4, with a Graduation of 0.01 mm for fine measurement resolution. Offers a Range of 10 mm, ideal for small-range precision measurement tasks.
- Specifications
- Features
- Downloads
| Dial Reading | +/-0-100 |
| Digital/Analog | Analog |
| Graduation | 0.01 mm |
| Hysteresis | 3 µm |
| Inch-Metric | Metric |
| Mass (main unit) | 330 g |
| Measuring Force | 0.4 - 1.4 N |
| Measuring range | 15 µm |
| Range | 10 mm |
| Repeatability | 3 µm |
| Series | 4 |
| Type | Dial Gauge |
- Model: 4046AB from Mitutoyo Series 4
- Range: 10 mm – perfect for precise short-range measurements
- Graduation: 0.01 mm – provides fine resolution for accurate readings
- Back Type: Flat Back – ensures stable and secure mounting
- Standard: Meets ISO Type specifications for compatibility and quality
- Build Quality: Durable and reliable construction for consistent performance in precision measurement tasks
