Part Number : 4887A-19

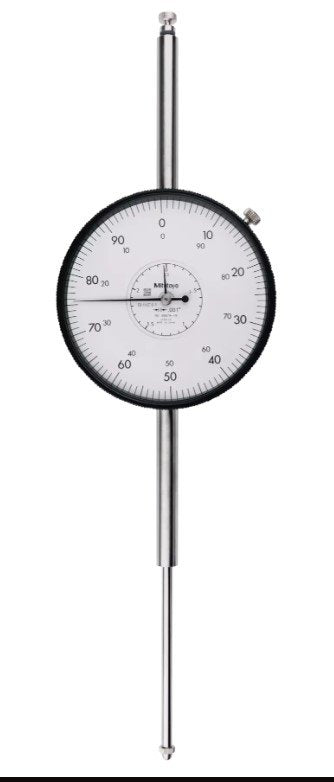

Mitutoyo 4887A-19 Dial Gauge offers high-precision measurements for industrial applications. Features a Lug Back design for easy and secure mounting on fixtures or stands. Built to ANSI/AGD Type standards, ensuring consistent performance and accuracy. Part of Series 4, with a Graduation of 0.001 inch for fine measurement resolution. Provides a Range of 3 inches and includes Jewelled Bearings for smooth and durable operation.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4-48UNF
Dial Reading	+/-0-100
Digital/Analog	Analog
Graduation	0.001 Inch
Hysteresis	0.00033 Inch
Inch-Metric	Inch
Mass (main unit)	407 g
Measuring Force	0.4 - 3 N
Range	3 Inch
Repeatability	+/-0.0002 Inch
Series	4
Stem Dia	9.52 mm Or 0.375 Inch
Type	Dial Gauge

Model: 4887A-19 from Mitutoyo Series 4
Range: 3 inches – suitable for extended measurement applications
Graduation: 0.001 inch – offers high-resolution precision for accurate readings
Back Type: Lug Back – allows for easy mounting on various setups
Bearings: Jewelled Bearings ensure smooth dial movement and long-lasting durability
Standard: Meets ANSI/AGD Type specifications for reliability and compatibility
Build Quality: Rugged construction for consistent and repeatable performance in industrial environments

DOWNLOAD CATALOG
