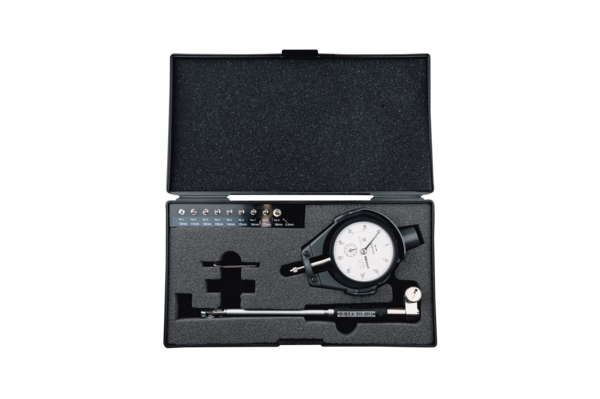

Mitutoyo 511-211-20 | 2-Point Inside Measuring Instrument | Bore Gauge | Range 6-10mm | Graduation 0.01mm
Through the use of a centring bridge, these bore gauges automatically center themselves.
They provide you with the following advantages:
Amazing accuracy can be achieved with a long plunger stroke.
As standard accessories, interchangeable washers with a thickness of 0.5 mm are provided, allowing you to gradually enable setting.
CBN contact points (>18 mm range) provide excellent wear resistance and durability.
50% less heat is transferred from the operator when using a big grip.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | 5 µm |
Graduation | 0.01 mm |
Measuring depth max. L | 50 mm |
Range | 6 - 10 mm |
Repeatability | 2 µm |
Weight | 255 g |
- Amazing accuracy can be achieved with a long plunger stroke.
- As standard accessories, interchangeable washers with a thickness of 0.5 mm are provided, allowing you to gradually enable setting.
- CBN contact points (>18 mm range) provide excellent wear resistance and durability.
- 50% less heat is transferred from the operator when using a big grip.
