Part Number : 513-401-10E

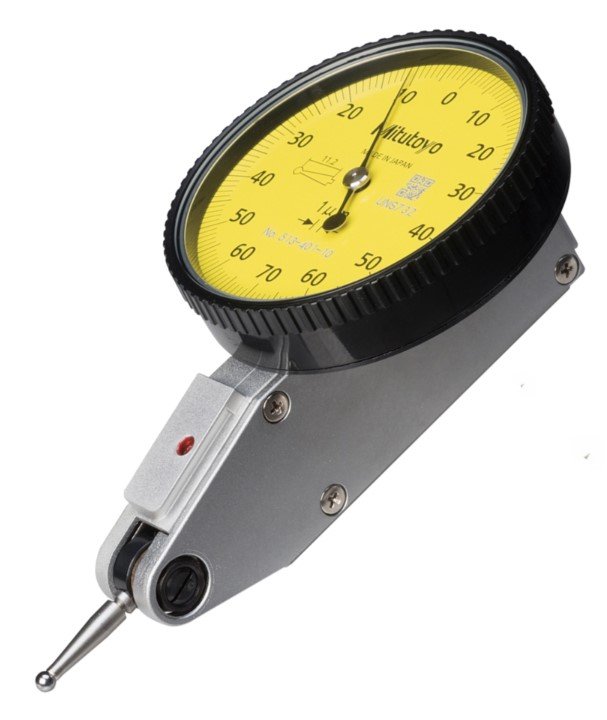

The Mitutoyo 513-401-10E is a high-precision horizontal dial test indicator from Series 513, built for ultra-fine measurements. It features an 8 mm stem for stable mounting in a variety of setups. With an exceptional 0.001 mm graduation and a 0.14 mm measuring range, it delivers ultra-high accuracy. Designed for tasks requiring the finest tolerance checks and critical surface inspections. Ideal for ultra-precision machining, calibration labs, and detailed metrology work.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-70-0
Digital/Analog	Analog
Graduation	0.001 mm
Hysteresis	2 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring Force	0.01 - 0.3 N
Measuring range	3 µm
Range	0.14 mm
Repeatability	1 µm
Series	513
Size	Stem Size : 8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.001 mm, providing high-resolution measurements.
Range: 0.14 mm, suitable for precise displacement measurements.
Dial Reading: 0–70–0, facilitating easy interpretation of measurements.
Measuring Force: 0.3 N or less, ensuring minimal impact on the measured surface.
Contact Point: Carbide, offering durability and resistance to wear.
Included Accessories: Comes with an 8 mm stem, providing flexibility for various setups.
